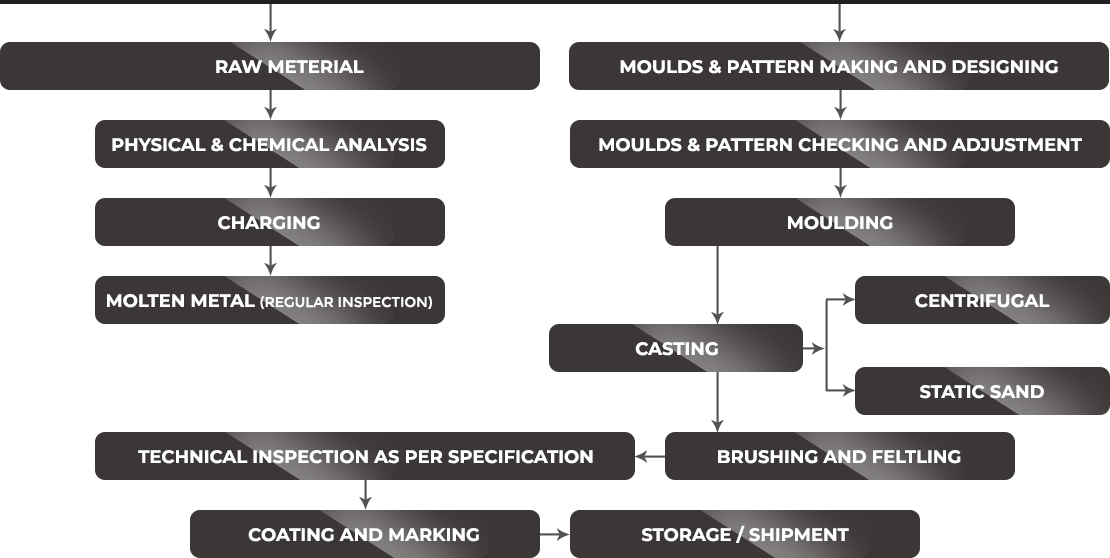

PROCESS
The centrifugal casting process is used to produce pipe, while static casting is used to produce fittings, manhole covers and others castings. Centrifugal casting and modern static casting provide rigid production control and yields high quality pipe, fittings and manhole covers of uniform dimensions cast to exacting specifications.

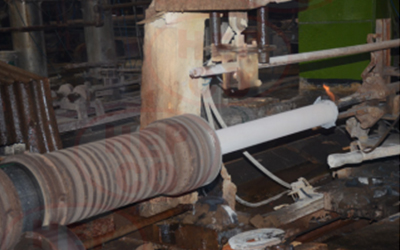

Centrifugal Casting in horizontal moulds is used to make long, concentric, hollow castings. In the centrifugal pipe casting process, a water-cooled metal mould is rotated on a horizontal axis during the interval of time that it receives a pre-measured quantity of molten iron. The centrifugal force created by this rotation causes the liquid iron to spread uniformly onto the mould’s inner surface, thereby forming upon solidification a cylindrical pipe conforming to the inside dimensions of the mould. After the pipe is cast, it is allowed to solidify in the still rotating mould. Finally, the pipe is removed from the mould and is conveyed to the foundry’s cleaning and finishing department.

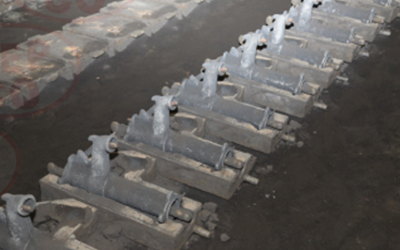

Static Sand Casting uses sand cores surrounded by green-sand moulds into which molten iron is poured to form castings. The sand is termed “green” because of its moisture content rather than its colour. The sand-casting process involves pattern making, moulding, core making and pouring after which the product is conveyed to the foundry’s cleaning and finishing department.
Cleaning and Finishing Operations include the following steps and procedures:

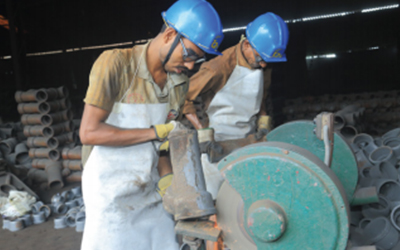

Brushing and Fettling: After the newly cast pipe, fittings and manhole covers have been removed from their moulds and allowed to cool, they must be properly cleaned to remove moulding sand, core sand, gates, fins, and risers.

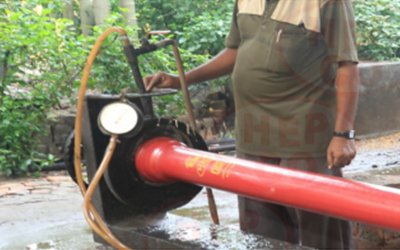

Technical Inspection: After the castings have been cleaned, they are inspected and tested for strict conformance to all standards and specifications under the Bureau of Indian Standard. In the laboratory, test samples undergo more exacting physical testing and chemical analysis.
Coating: After inspection and testing, pipe, fittings and manhole covers are coated as per the customer requirements. The finished pipe, fittings and manhole covers are then moved into storage or prepared for shipment.

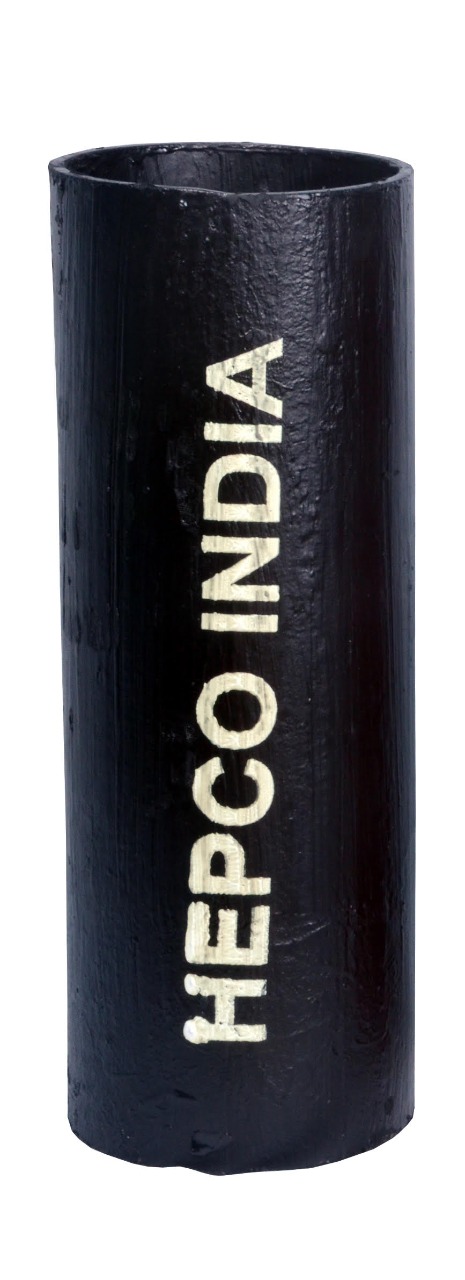

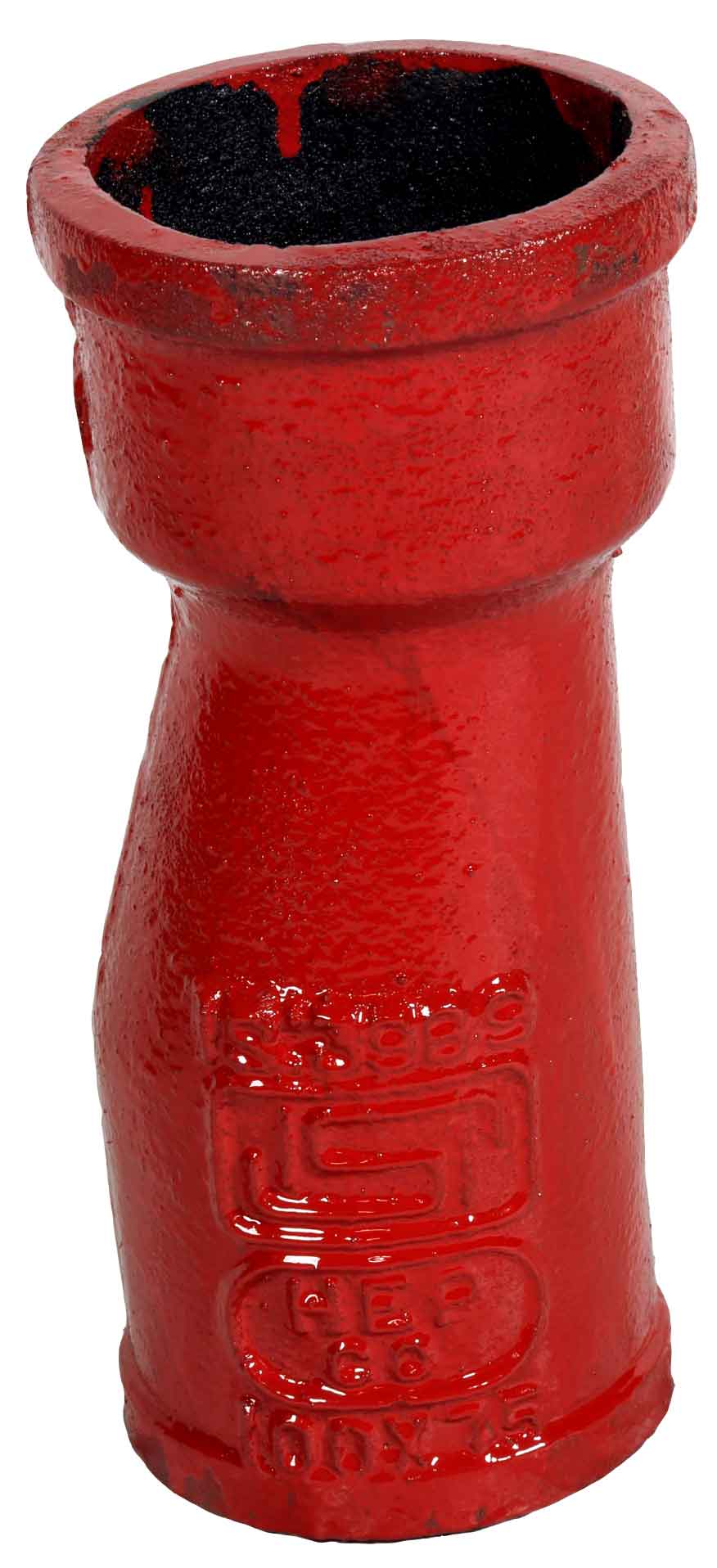

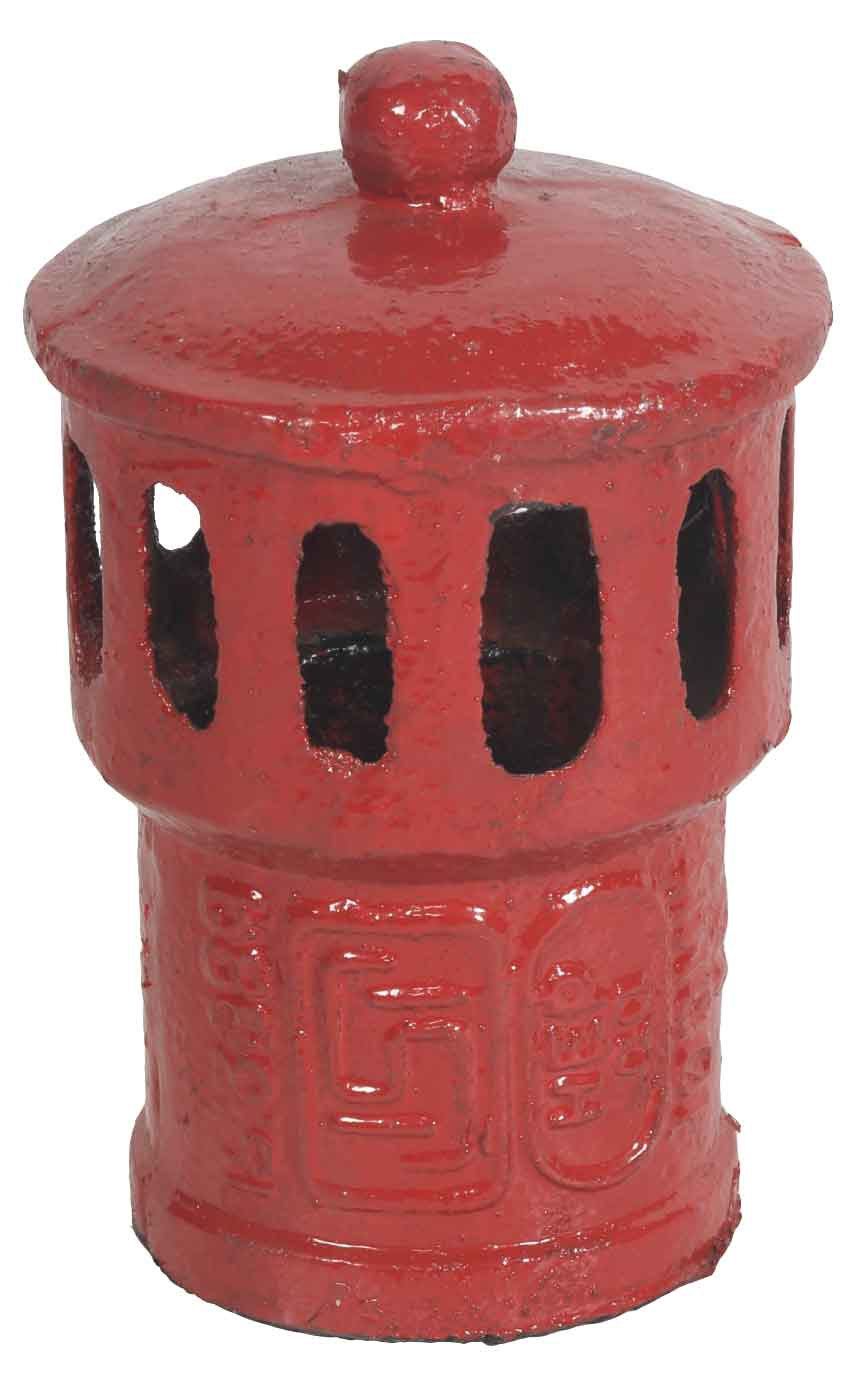

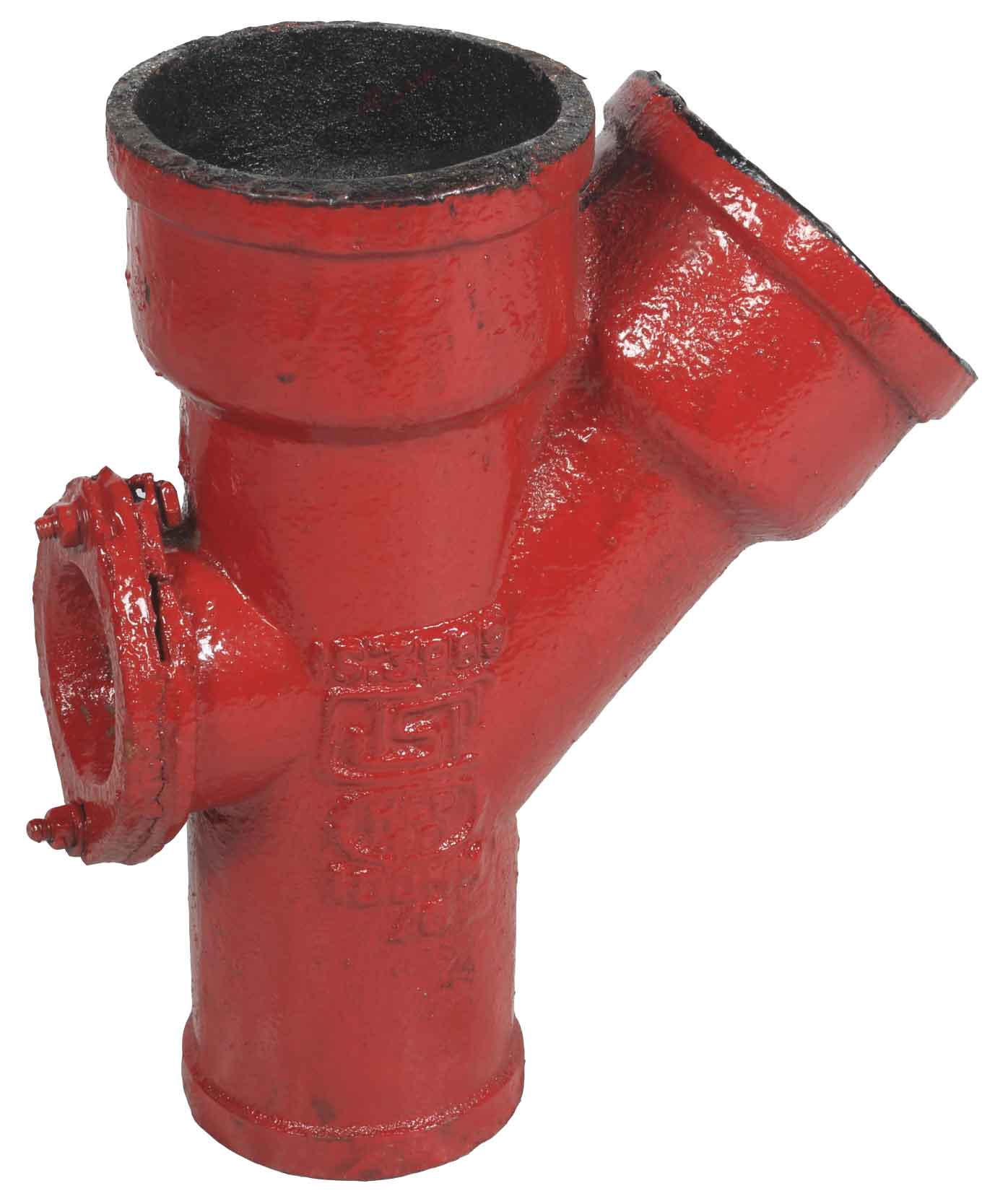

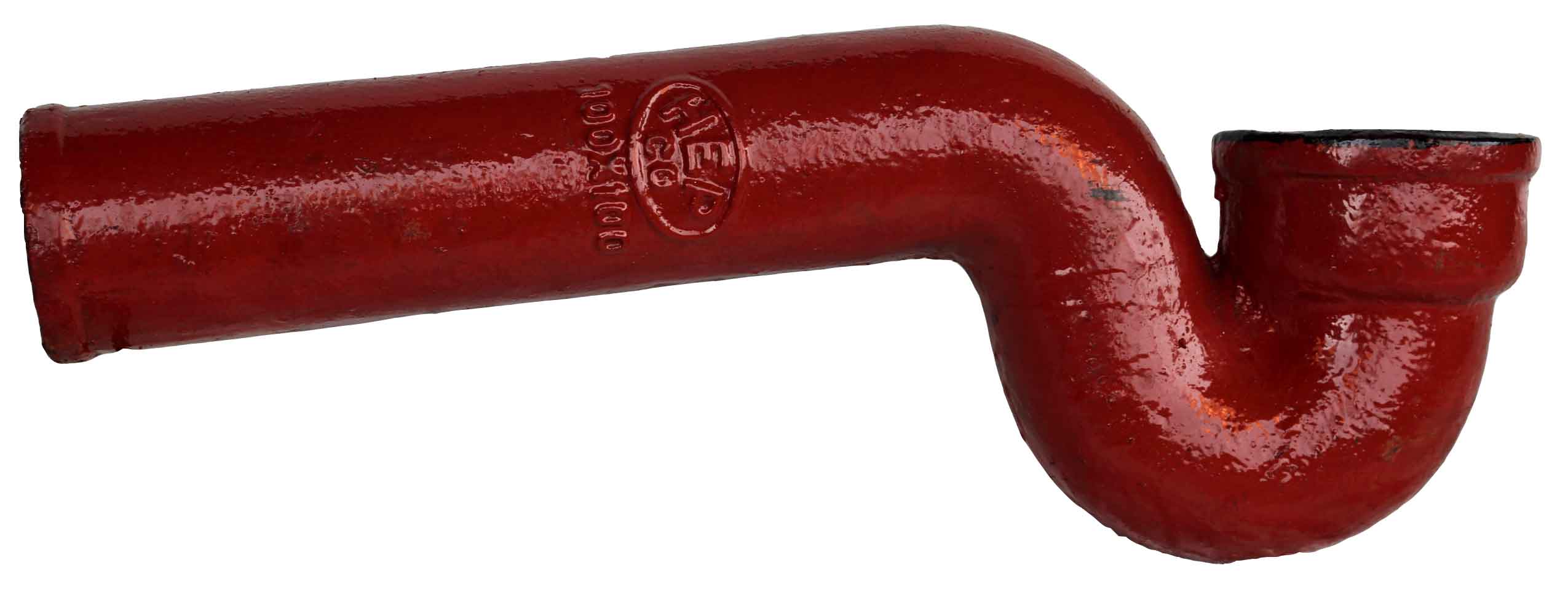

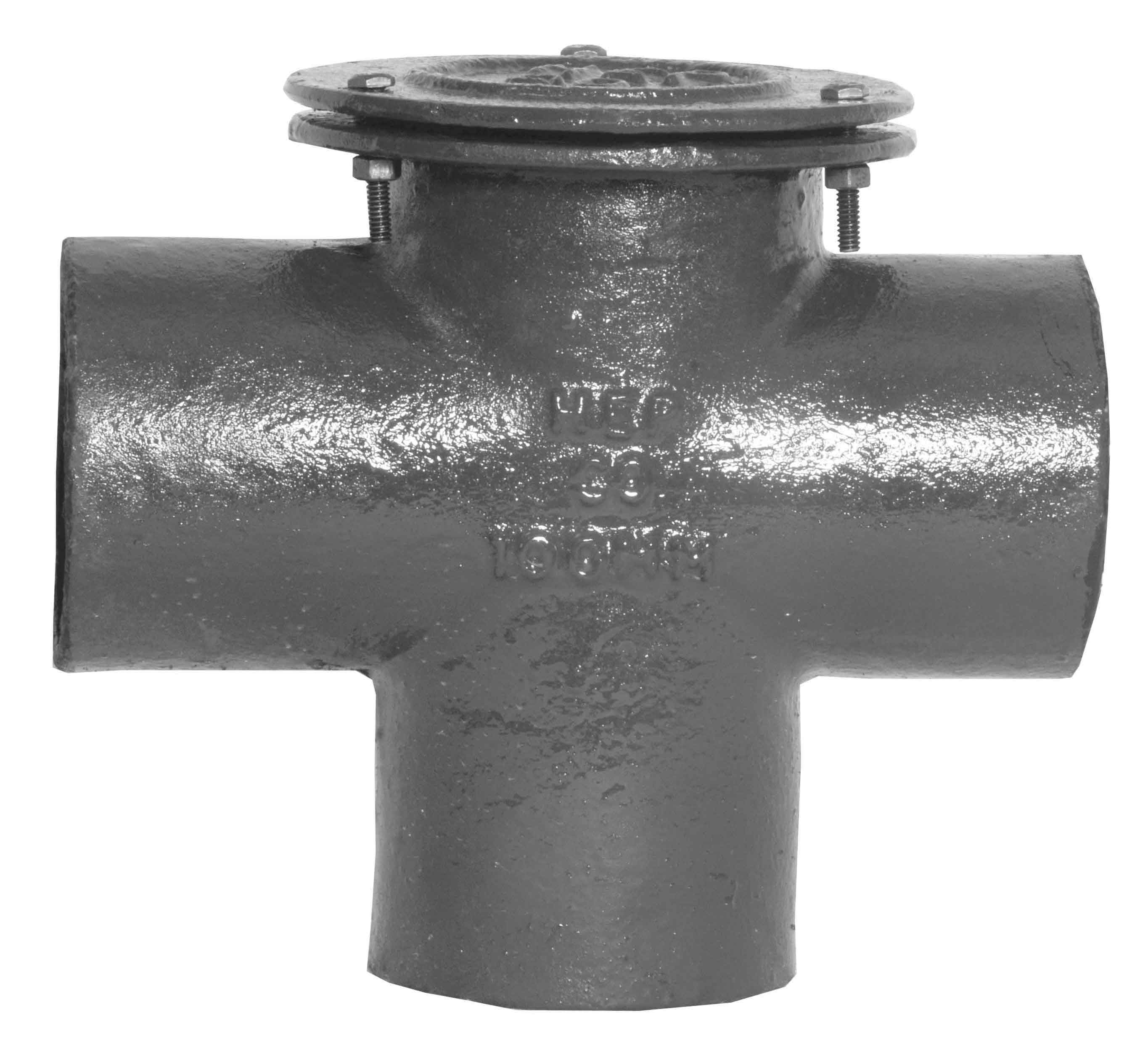

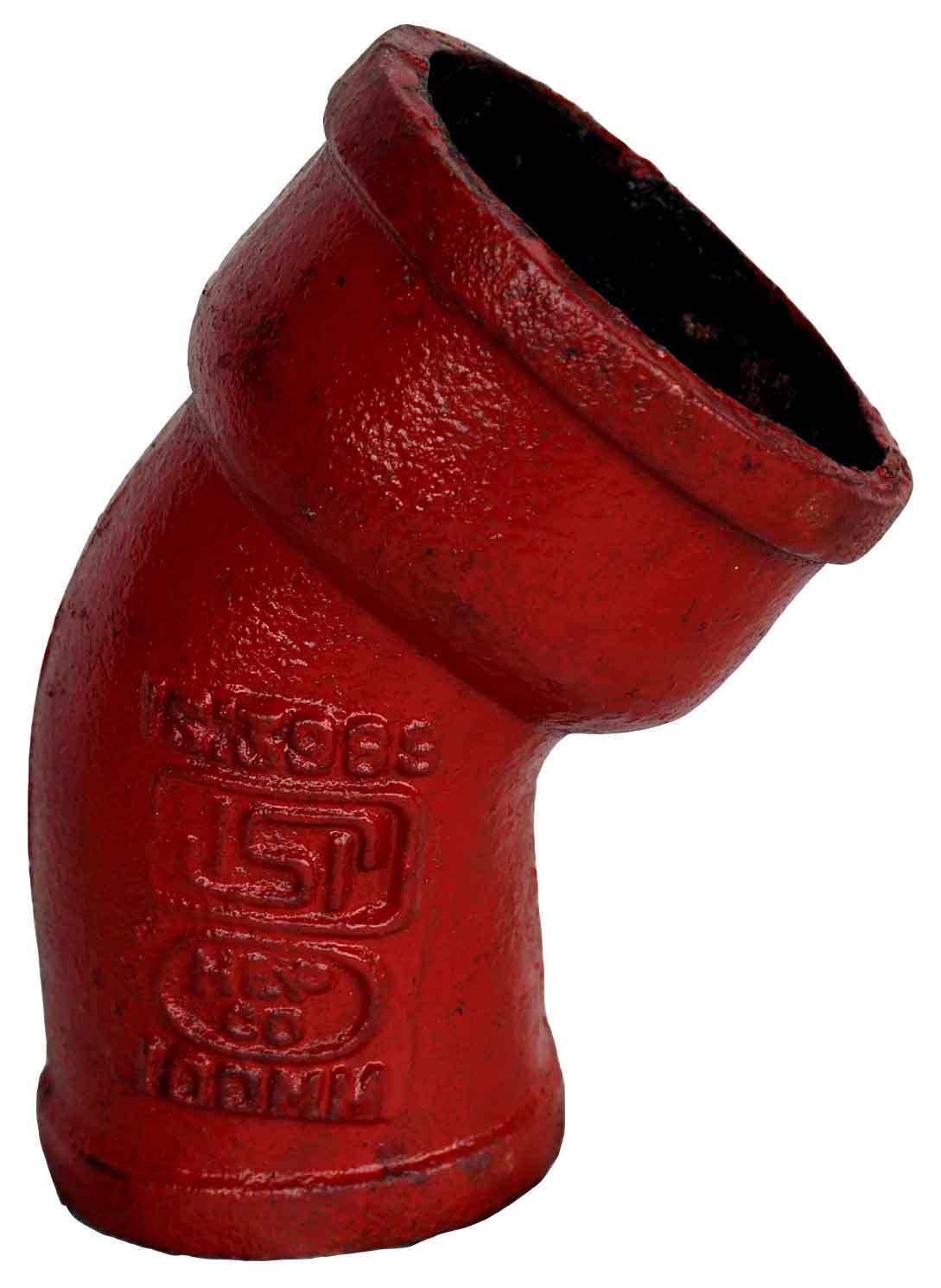

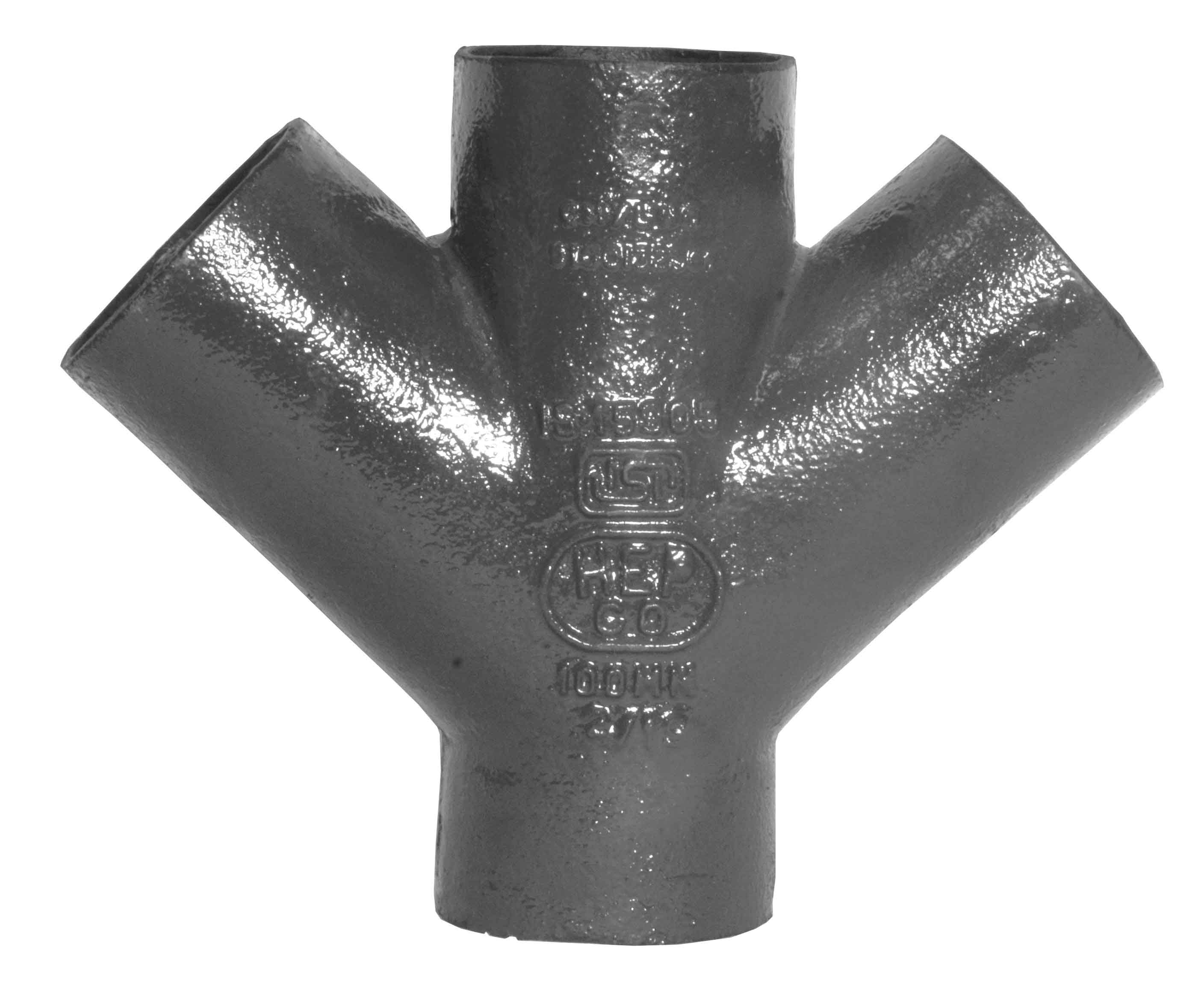

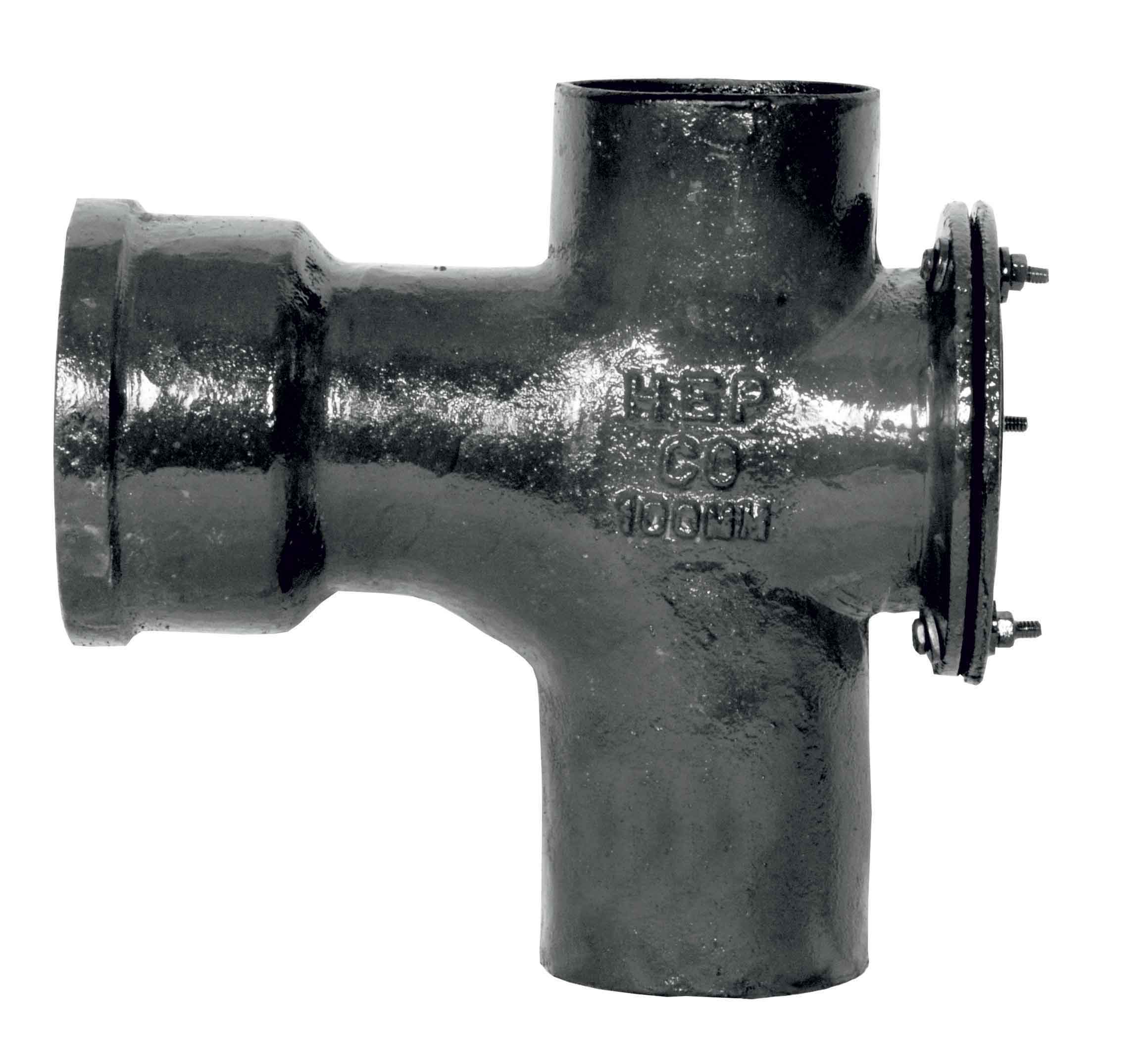

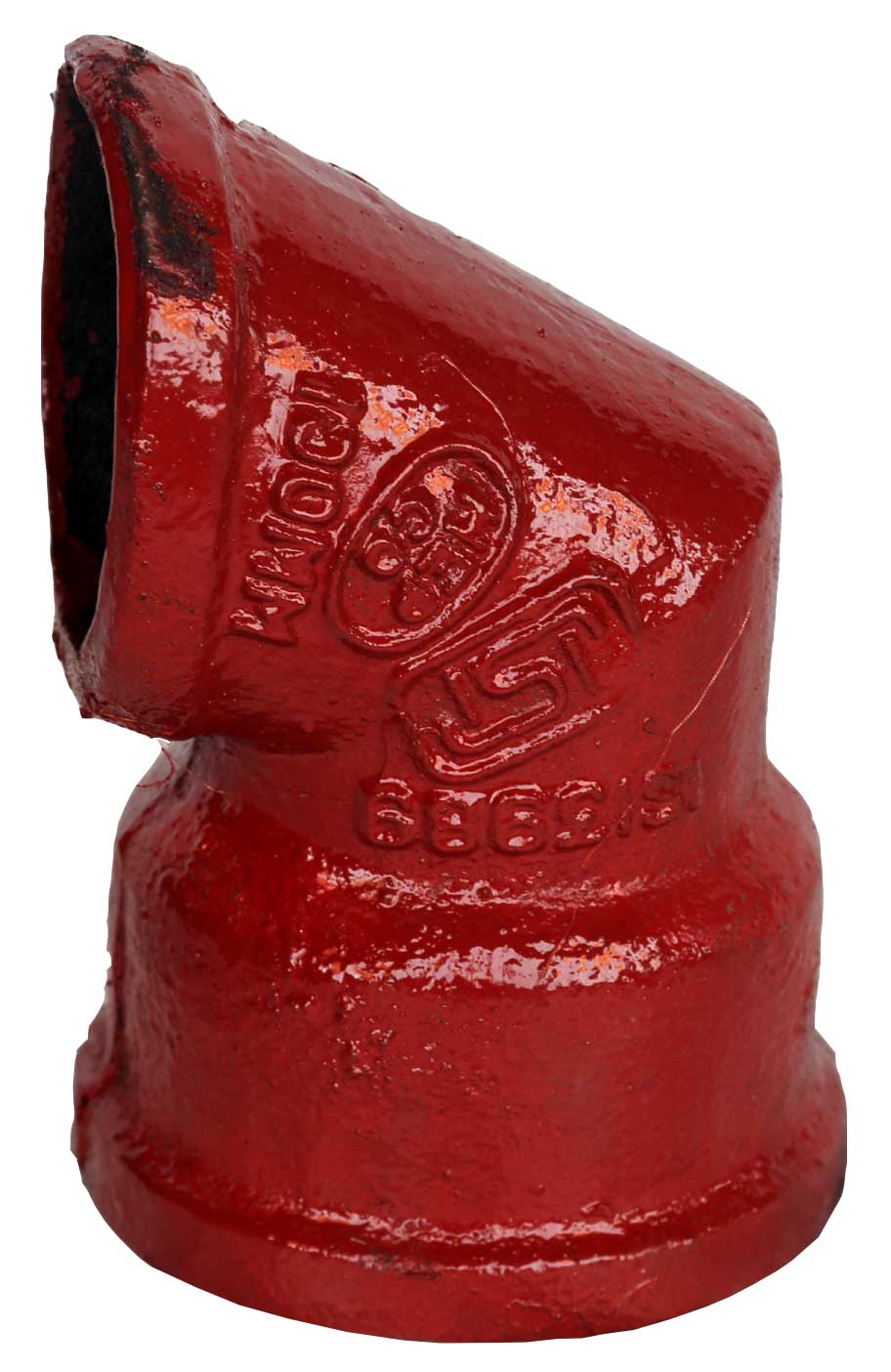

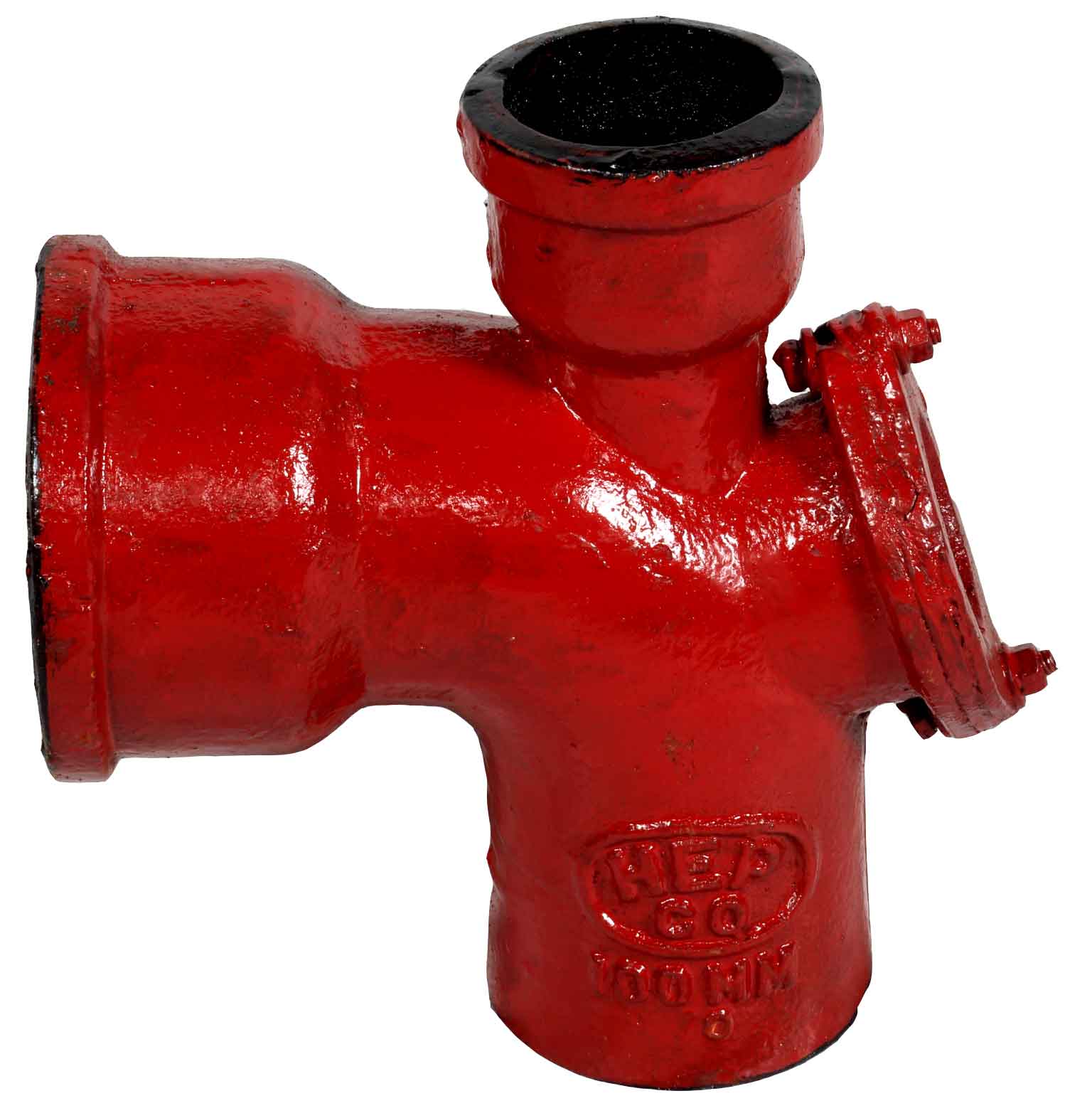

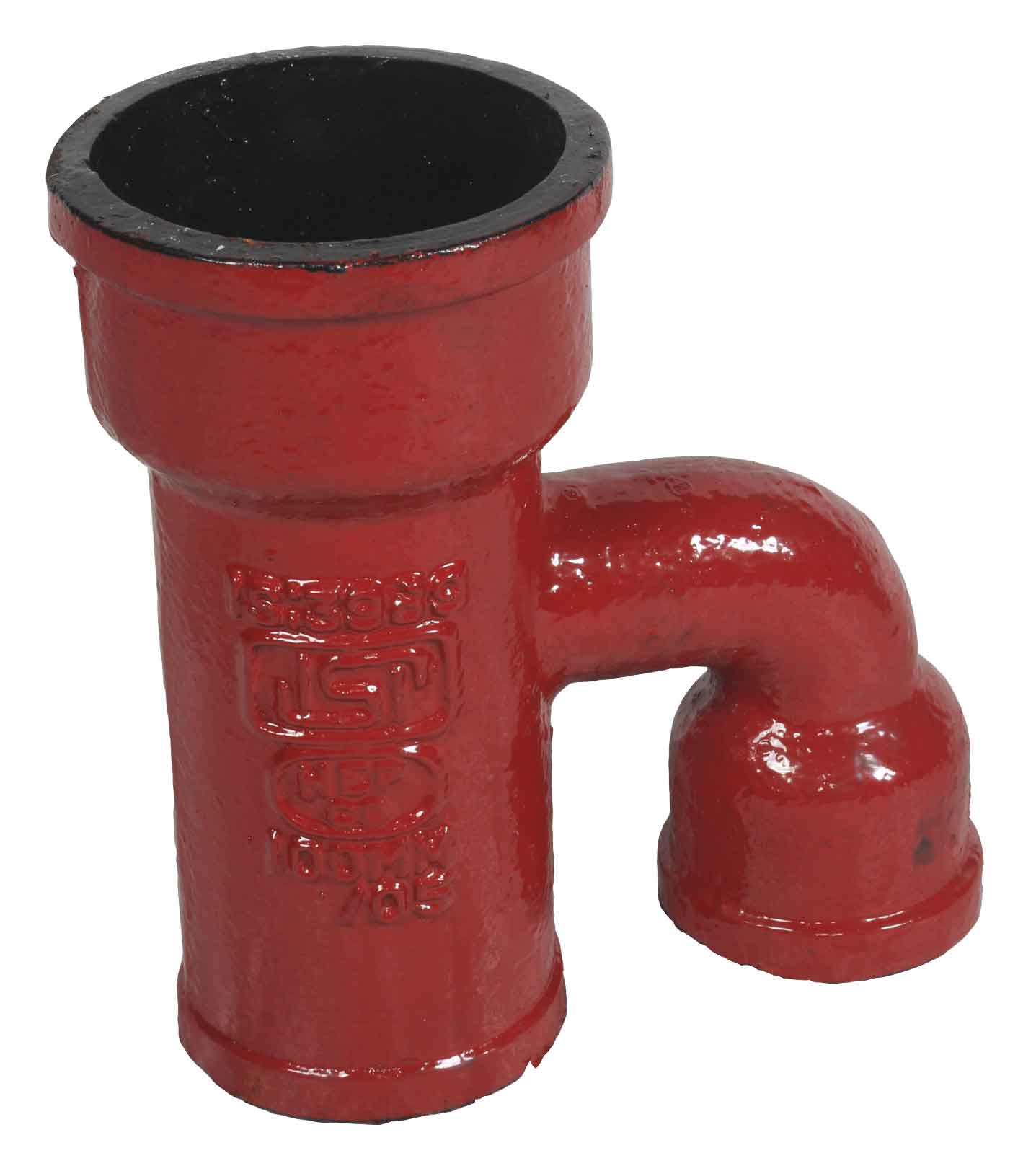

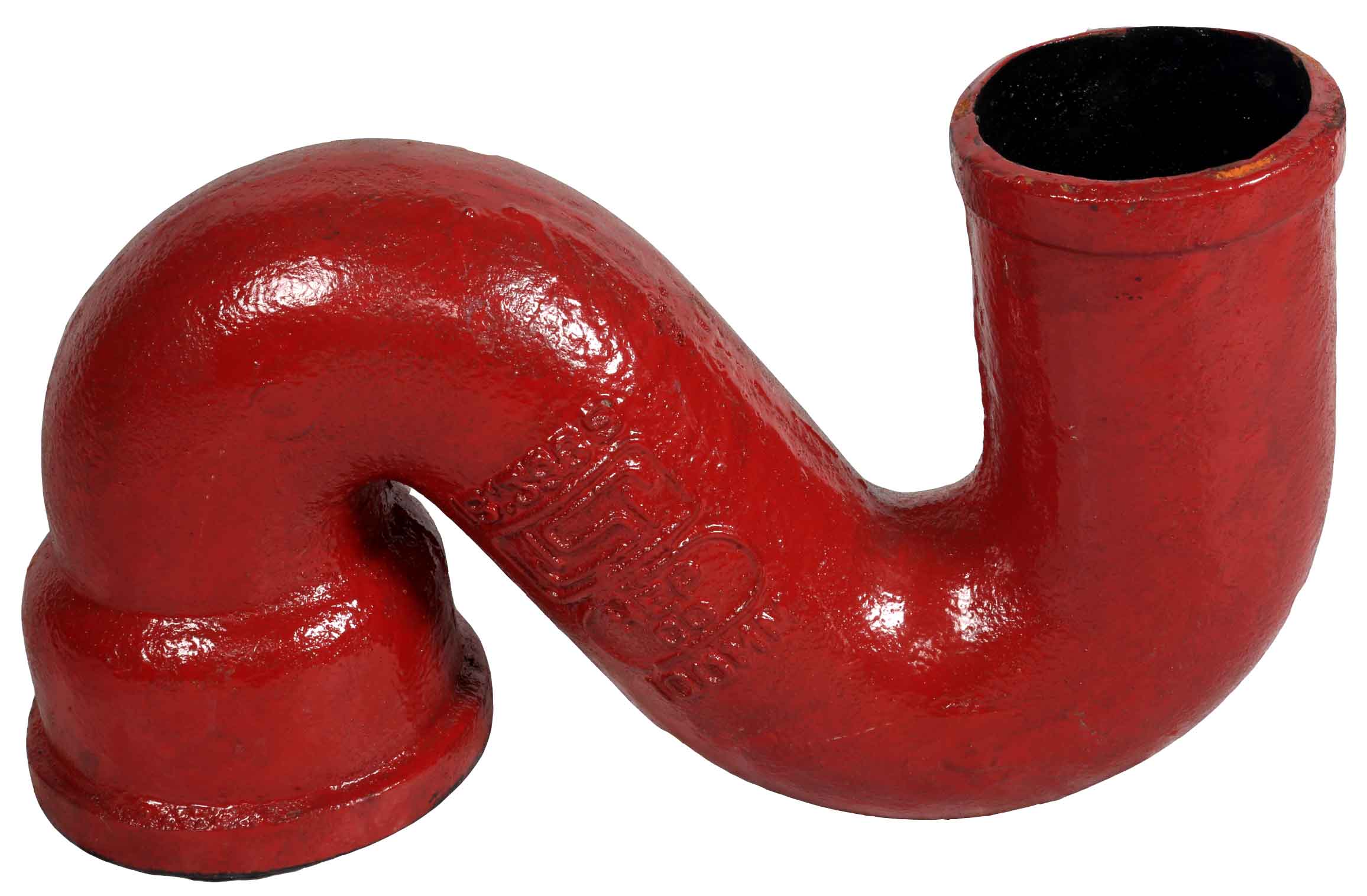

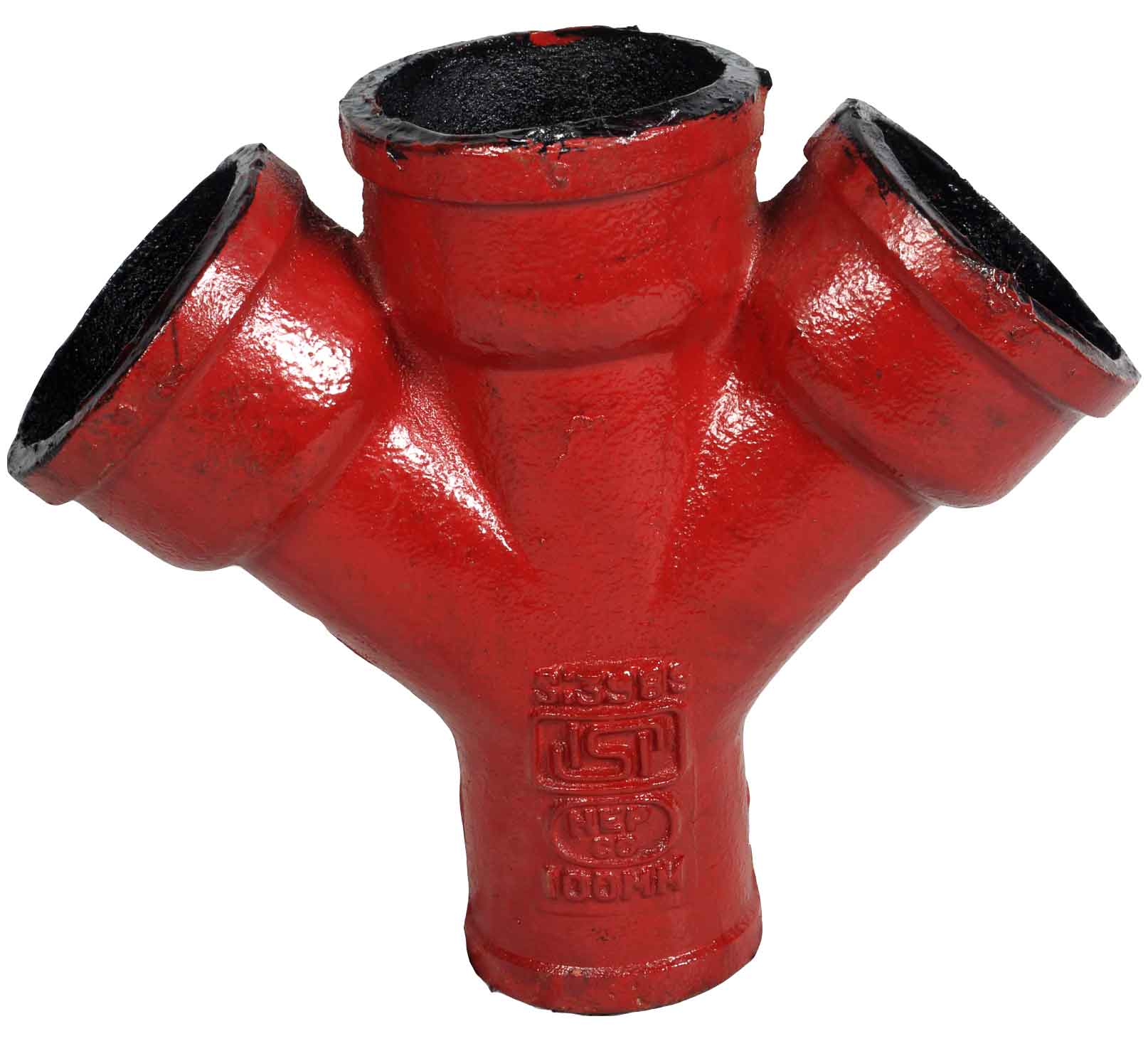

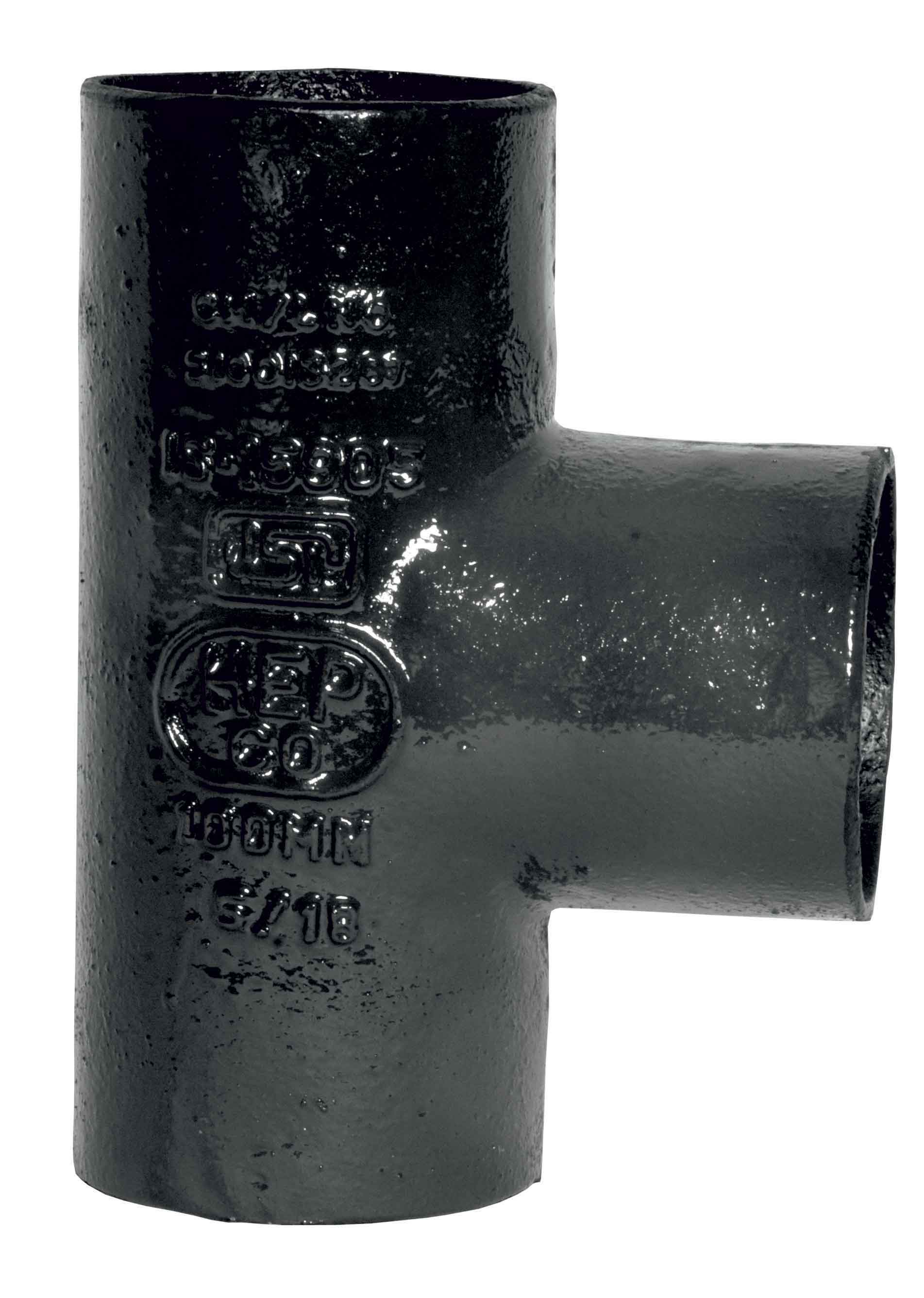

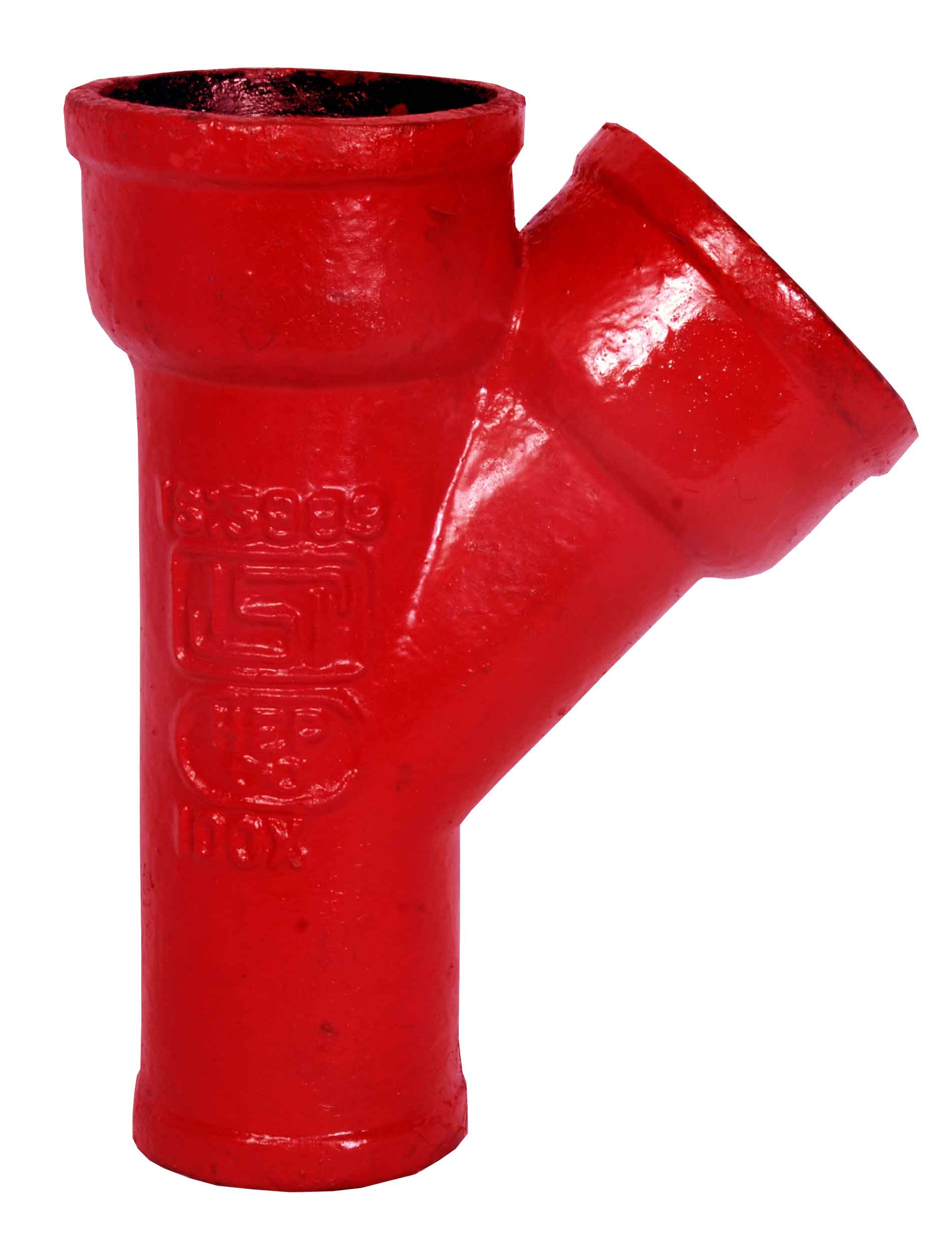

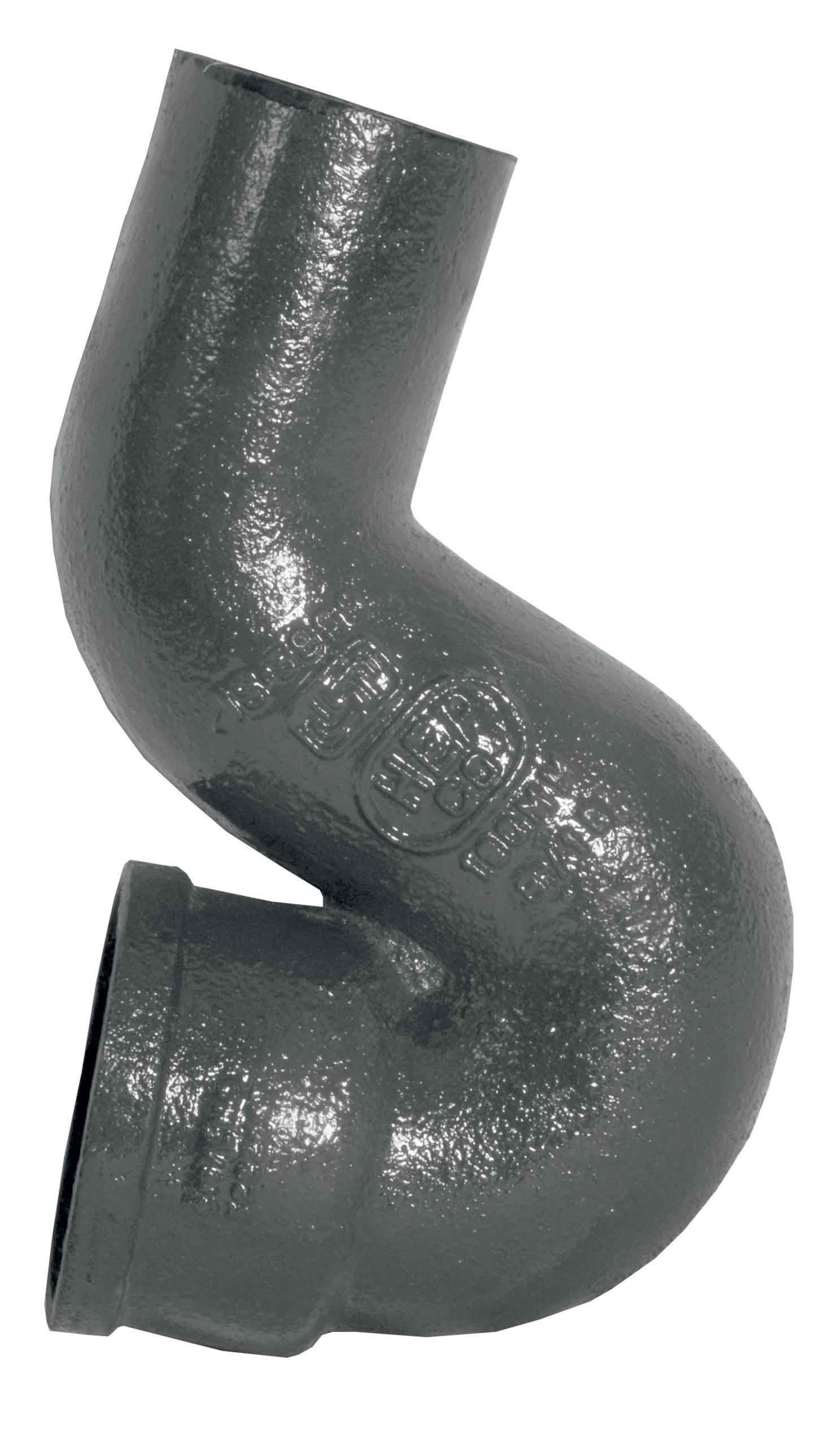

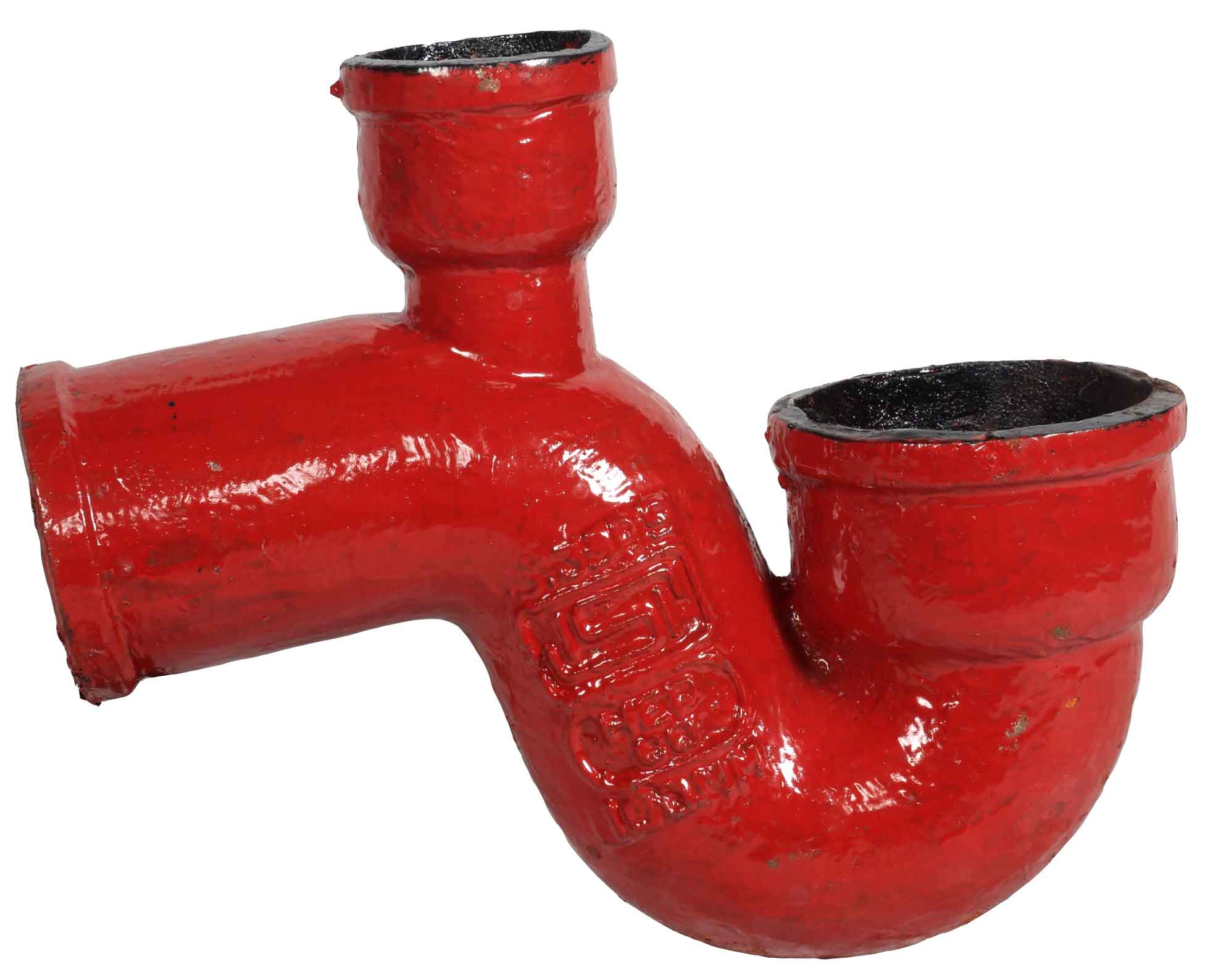

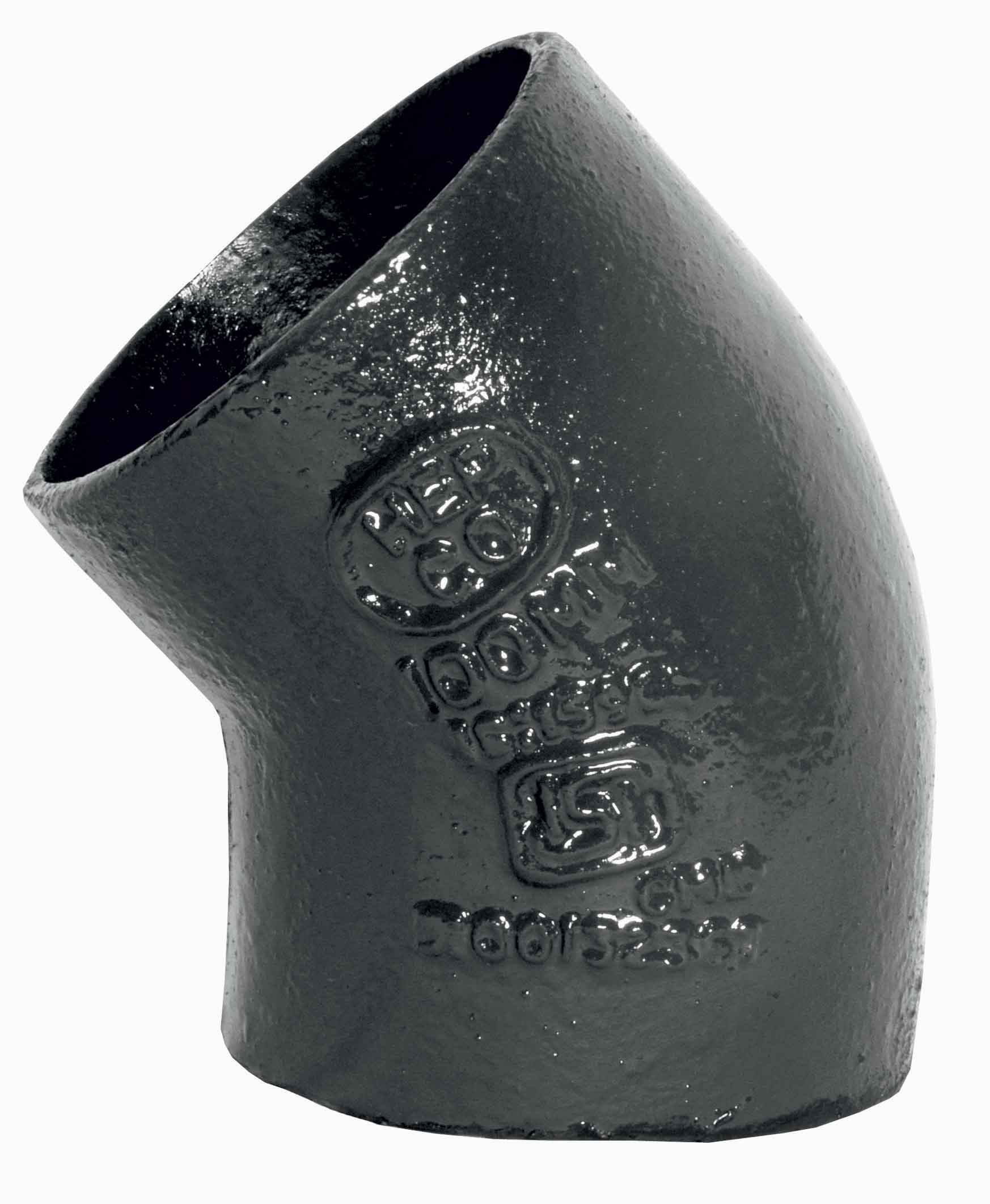

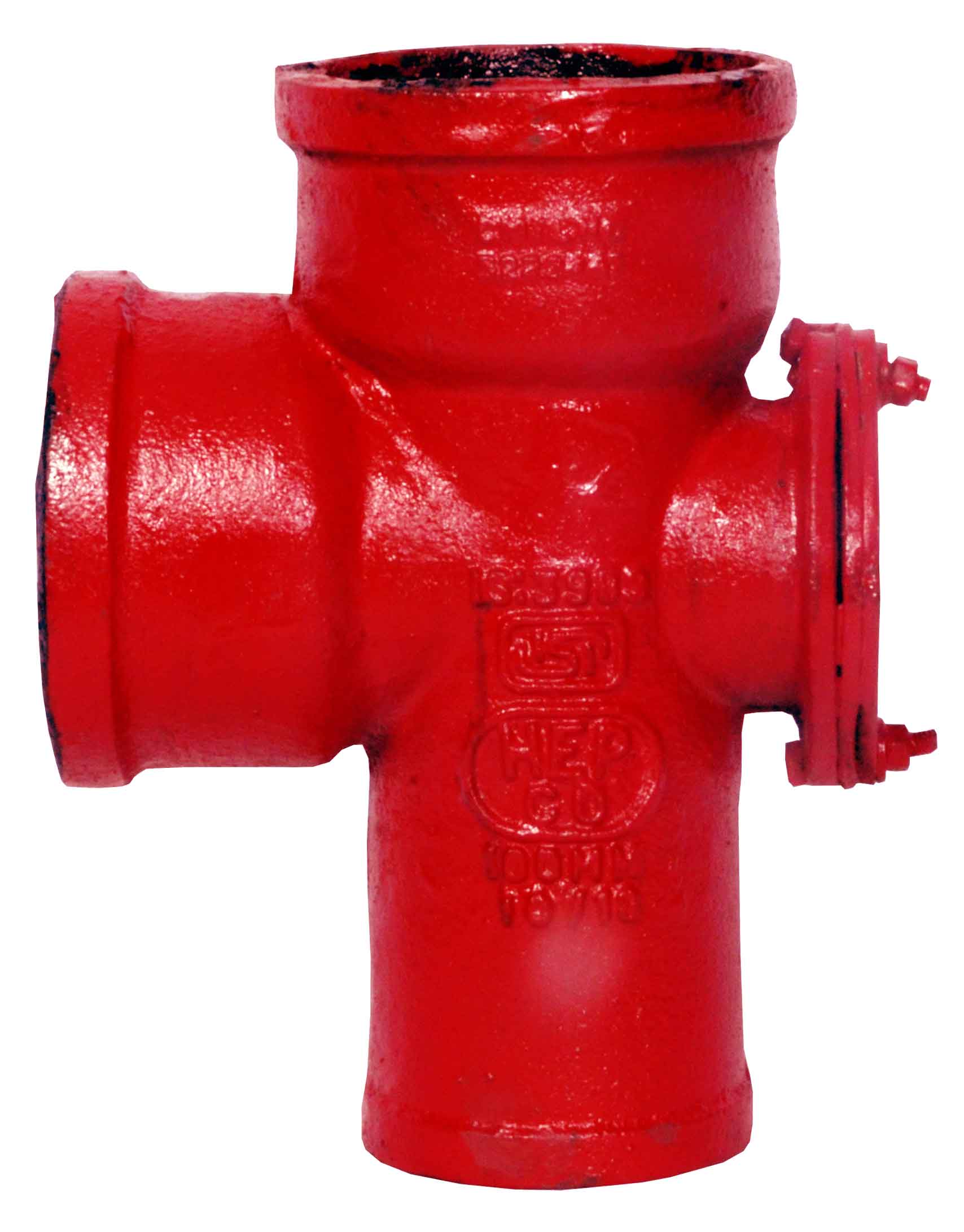

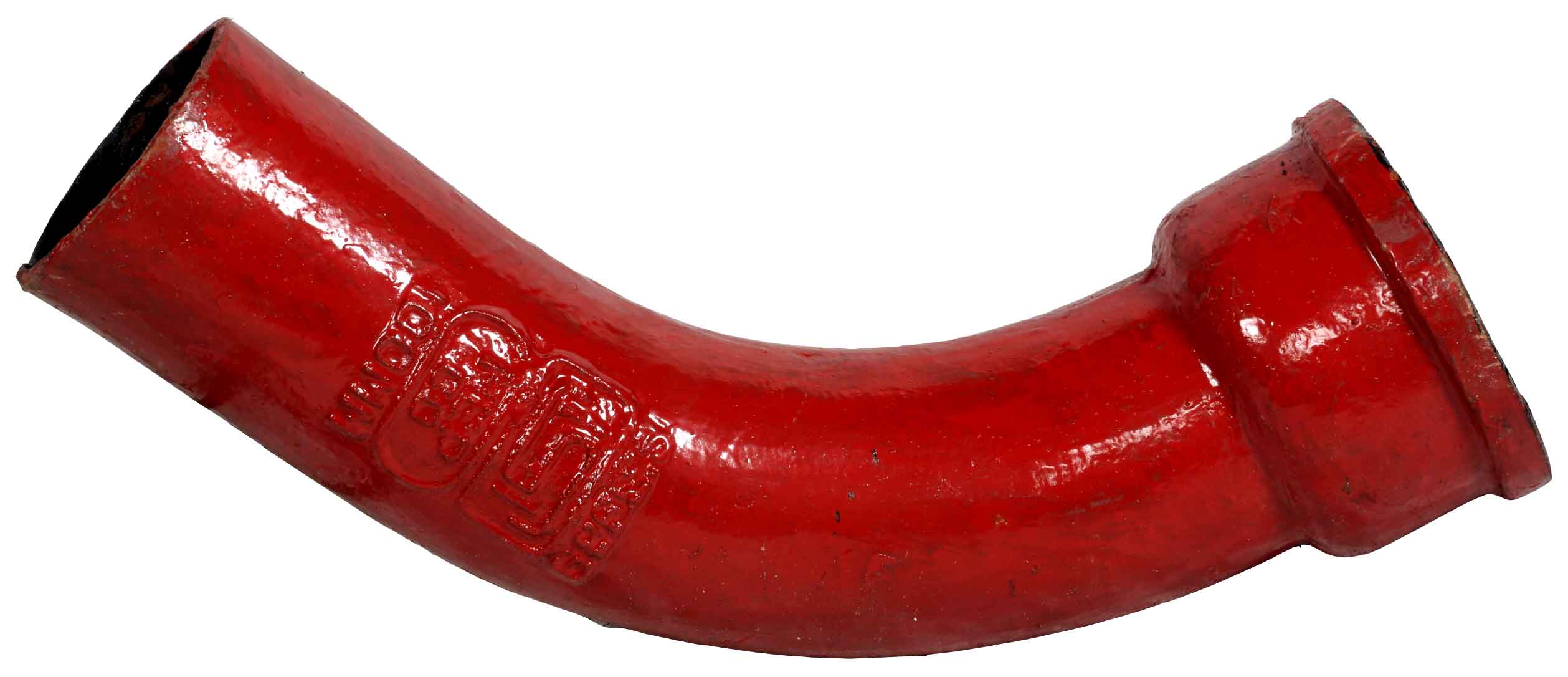

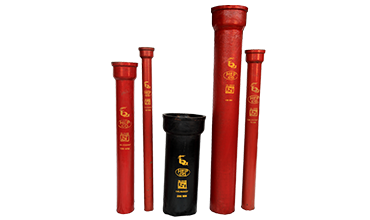

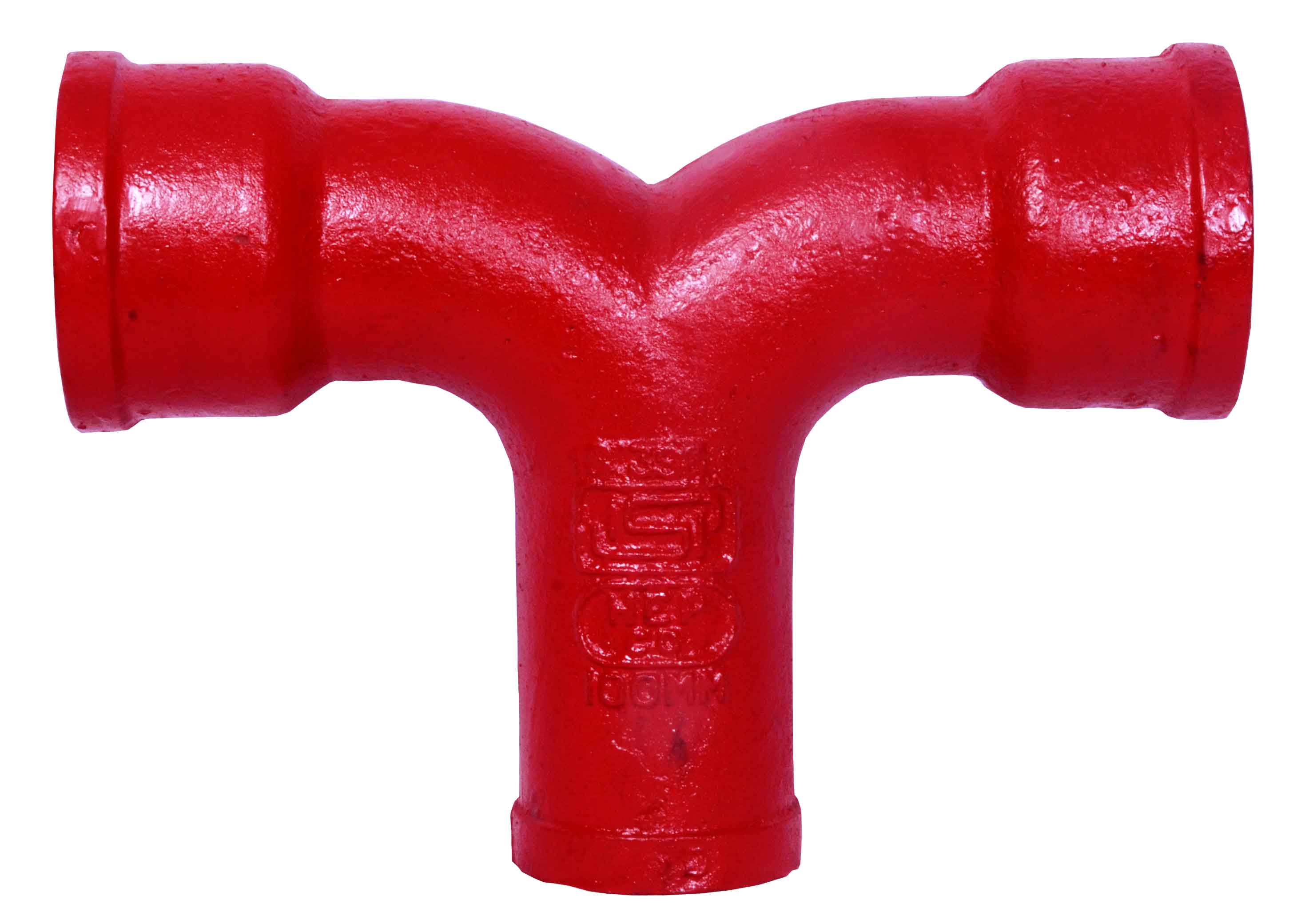

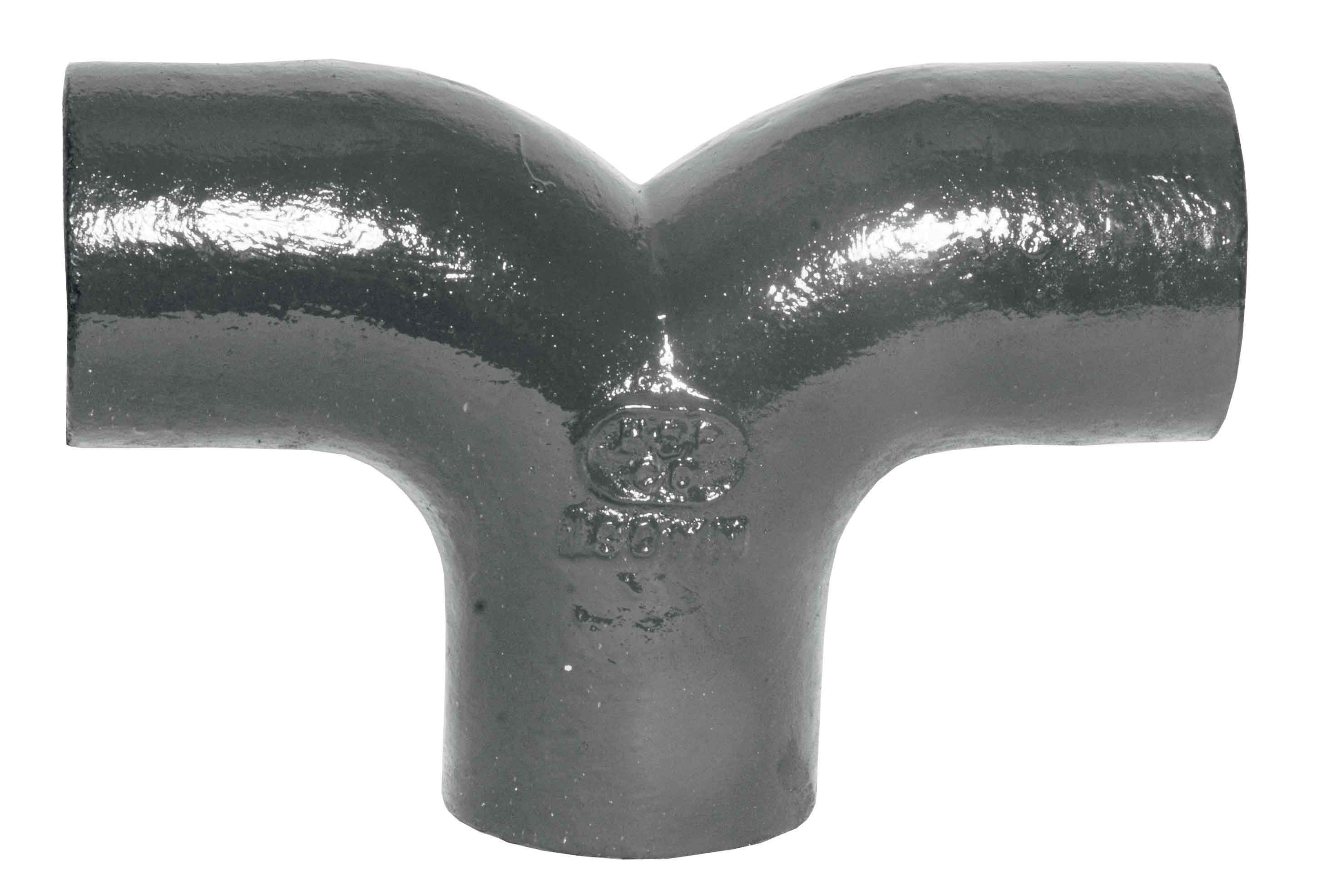

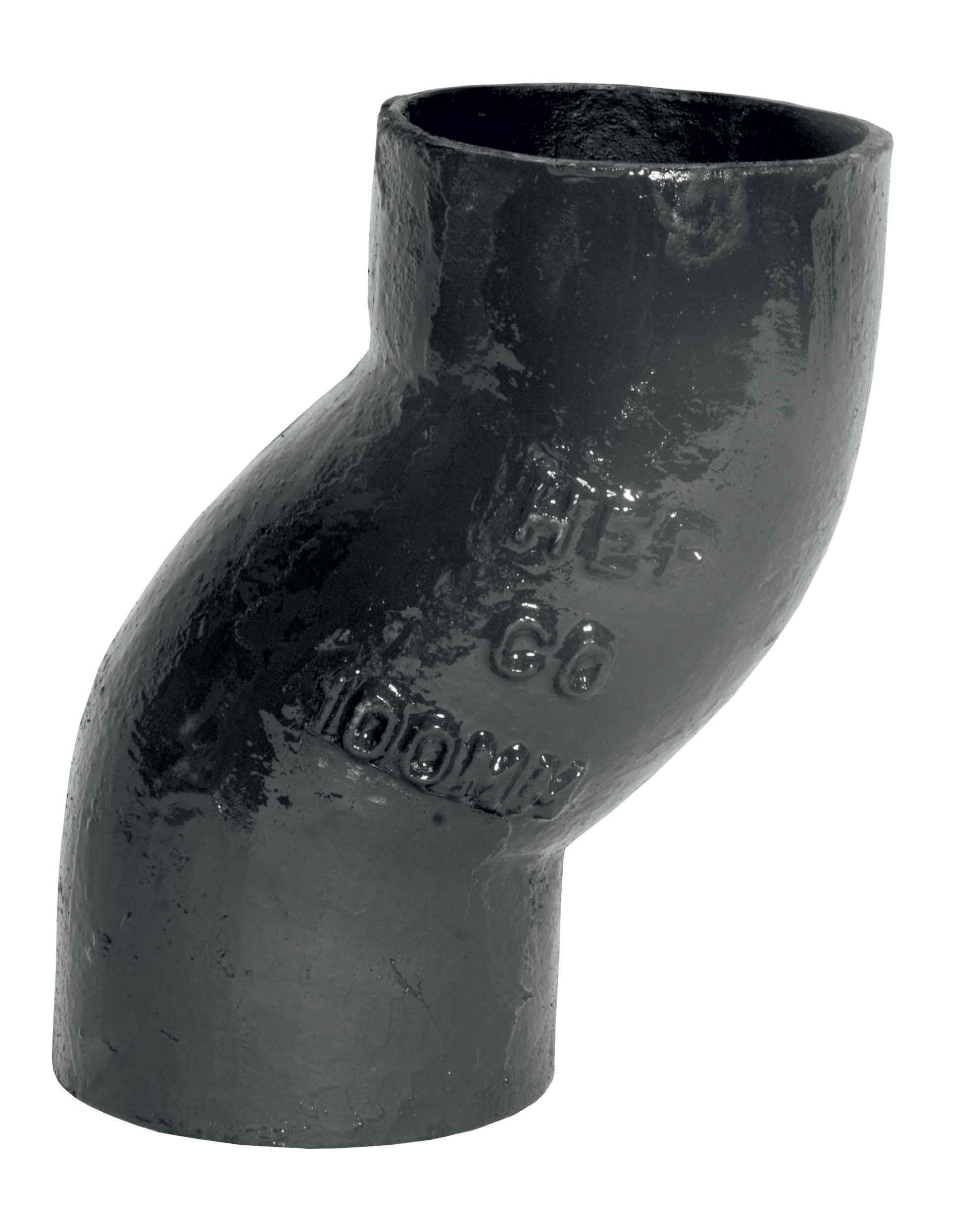

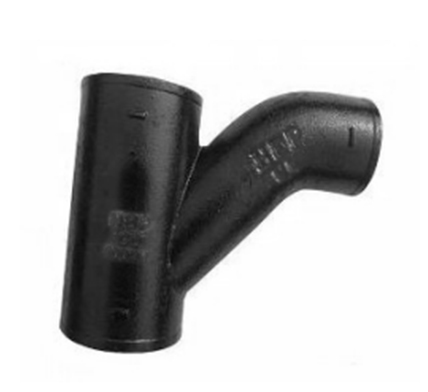

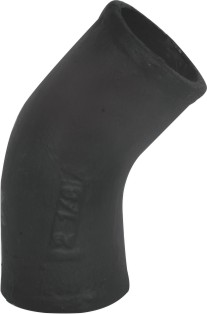

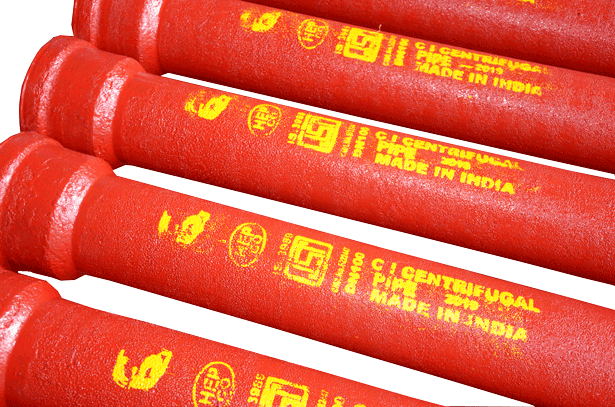

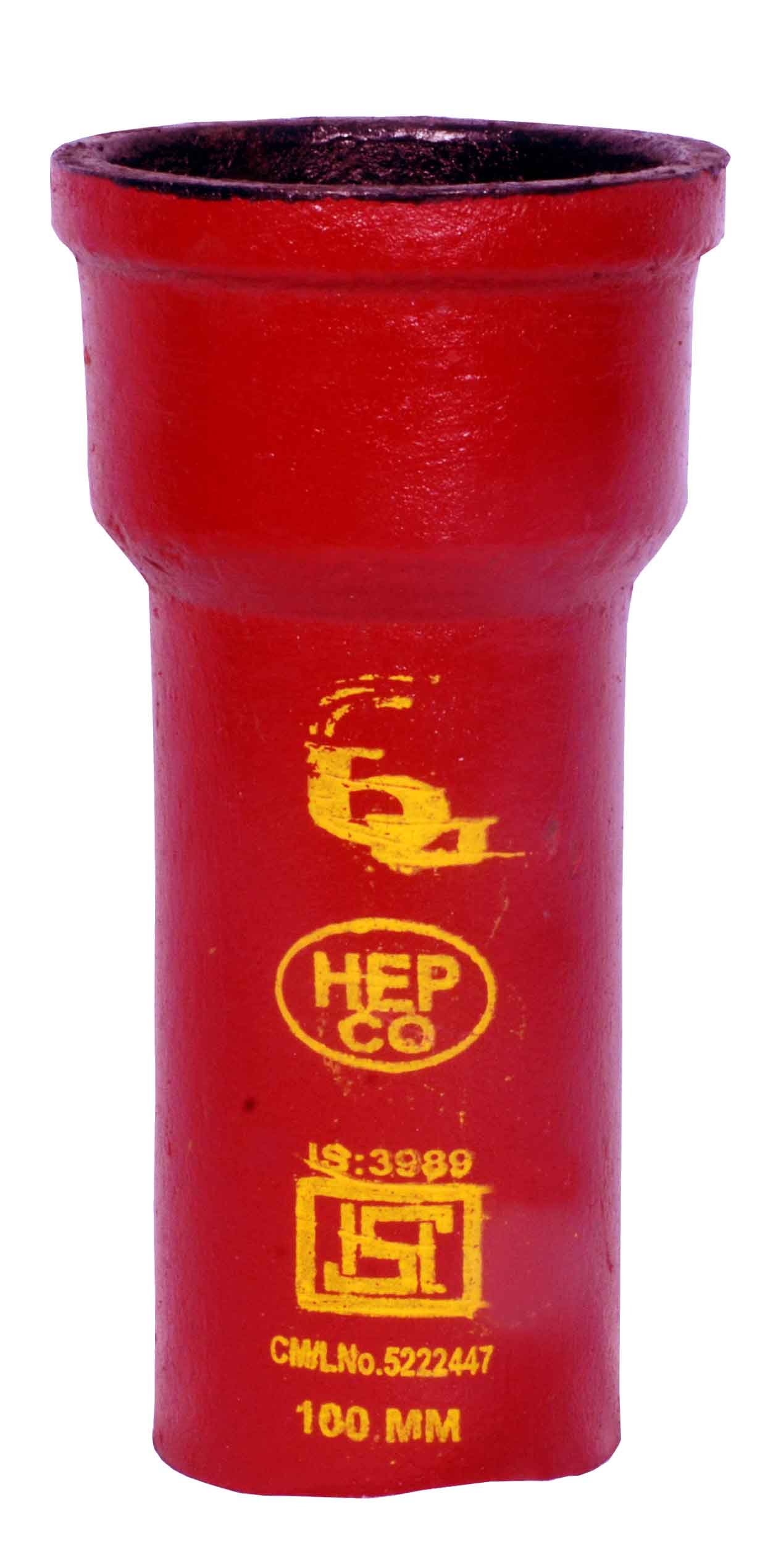

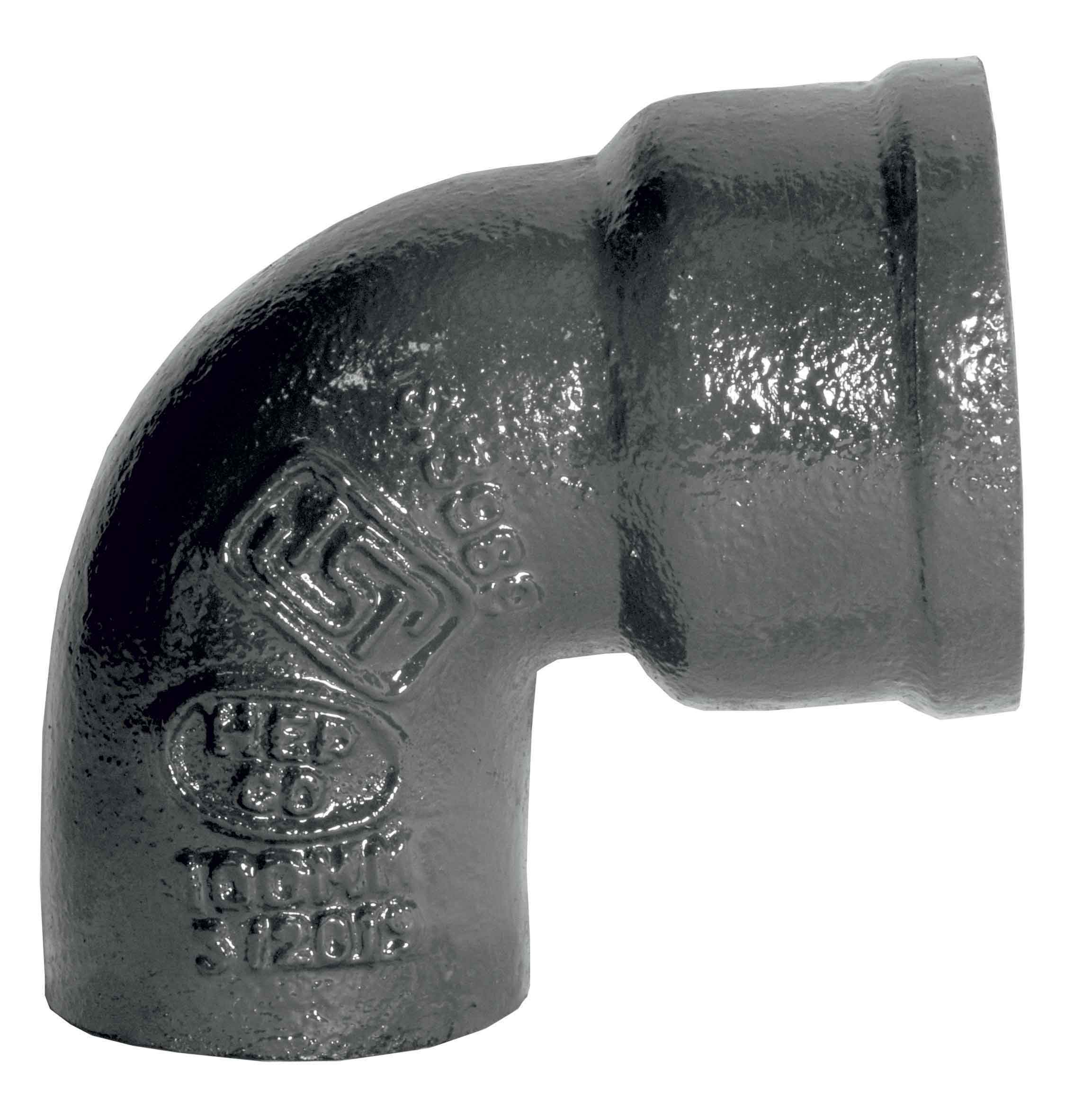

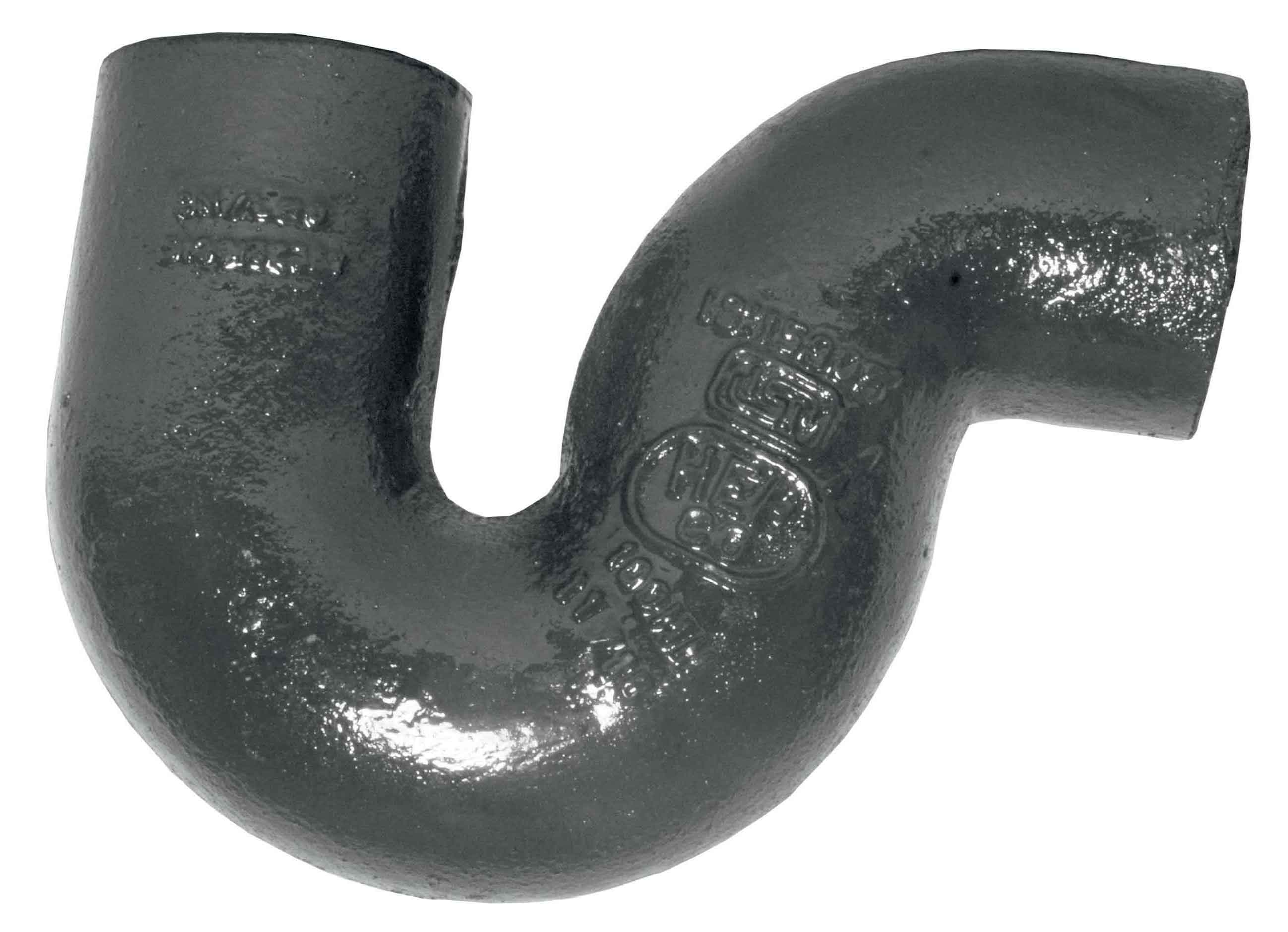

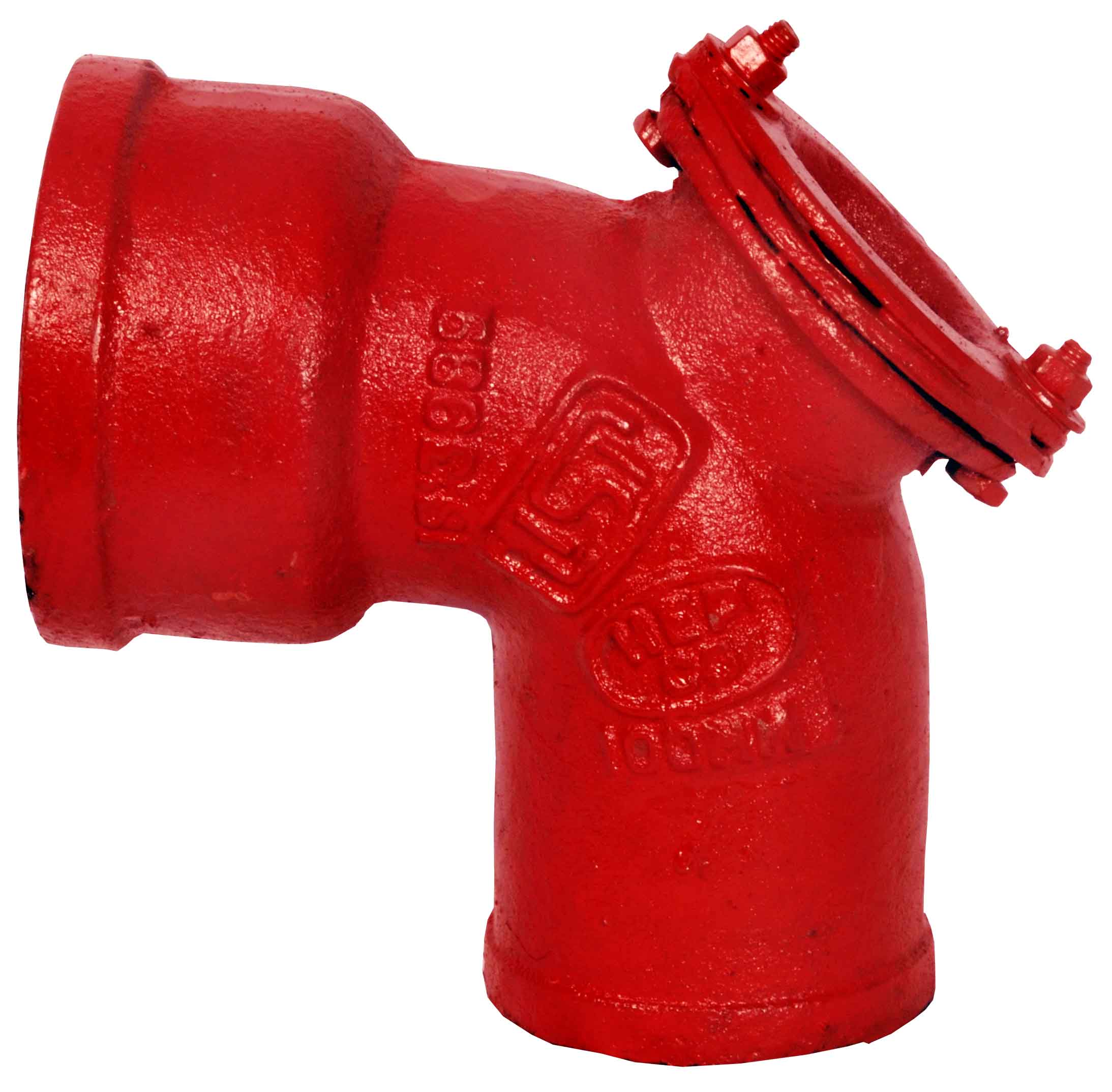

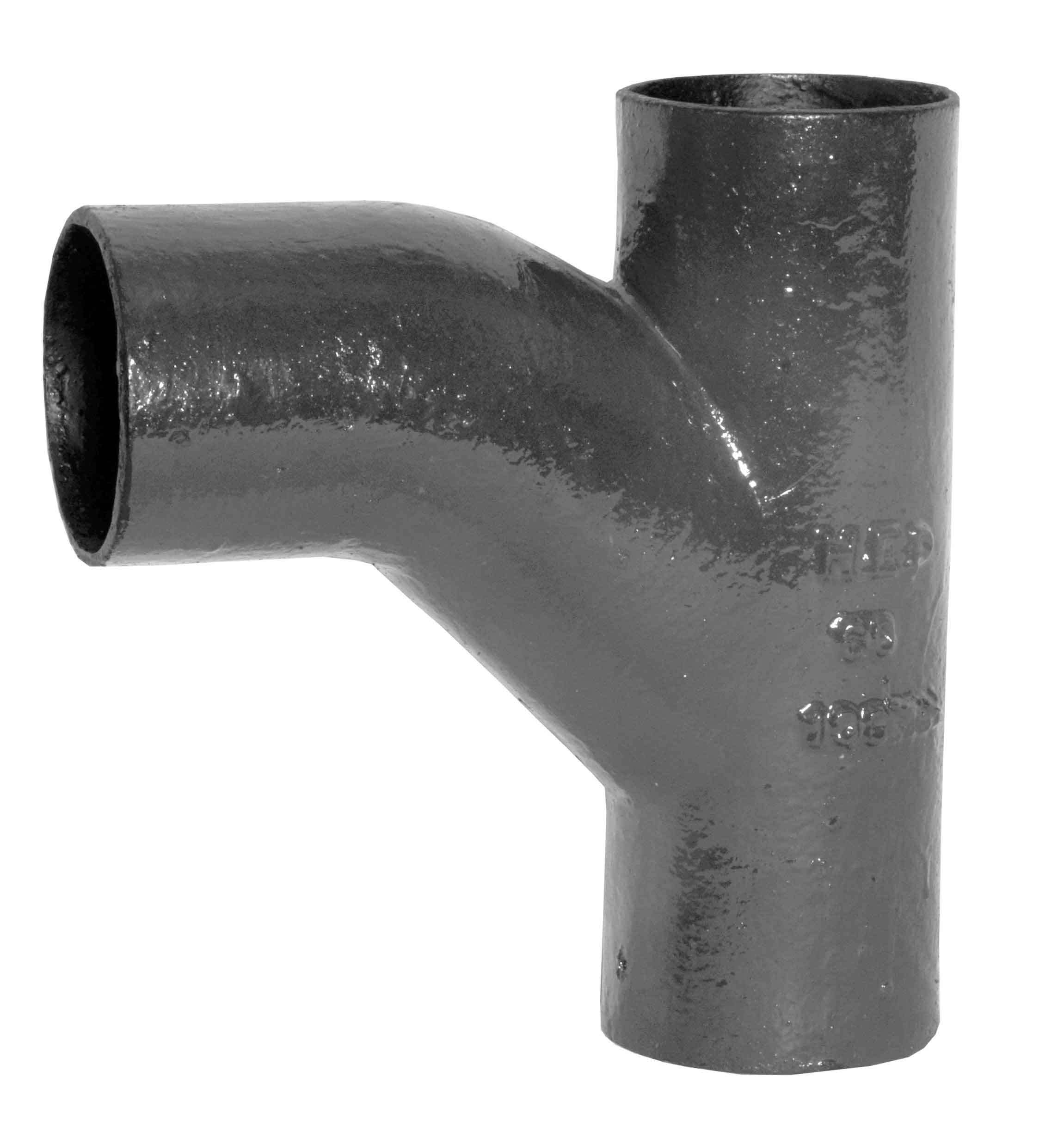

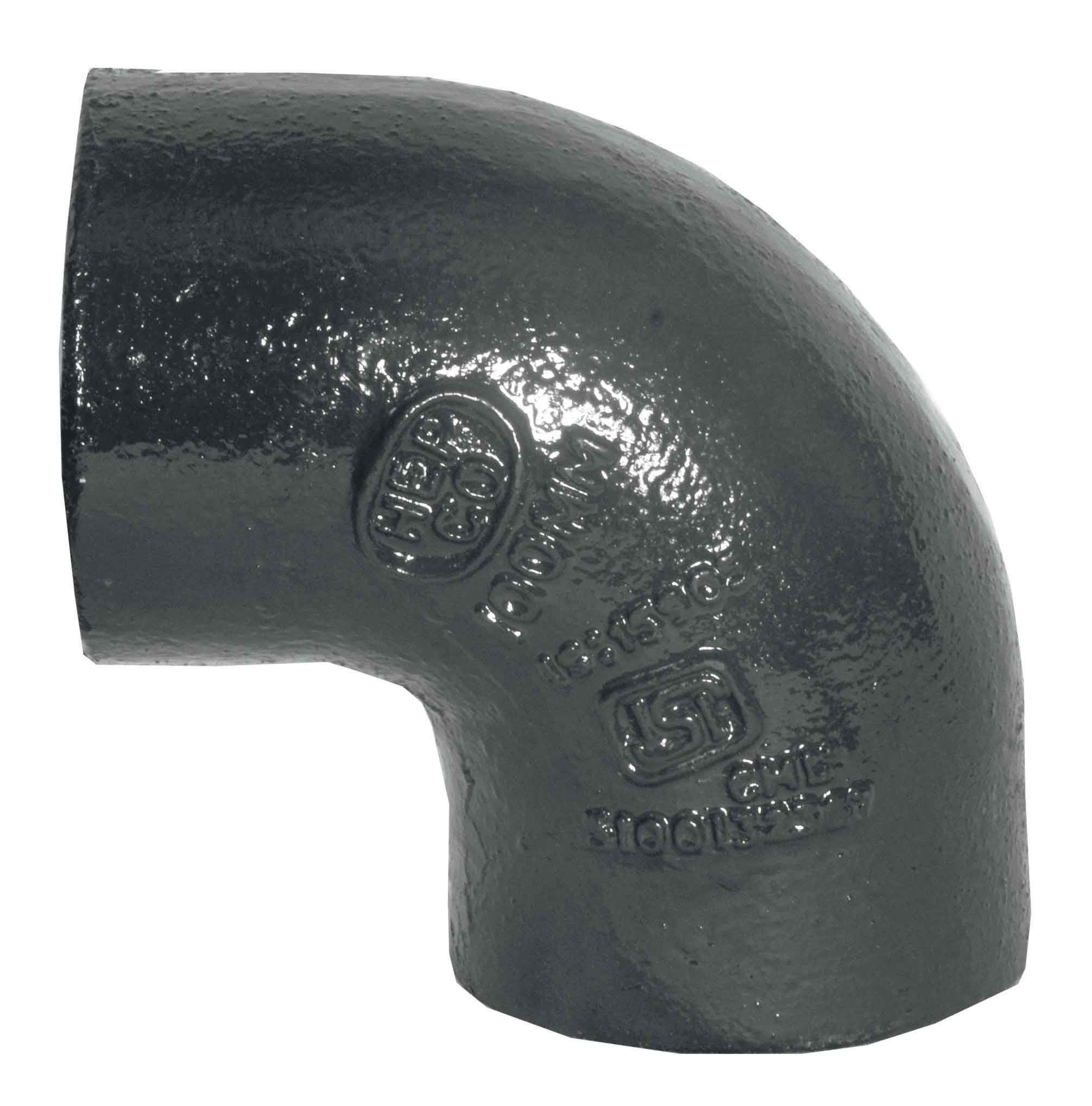

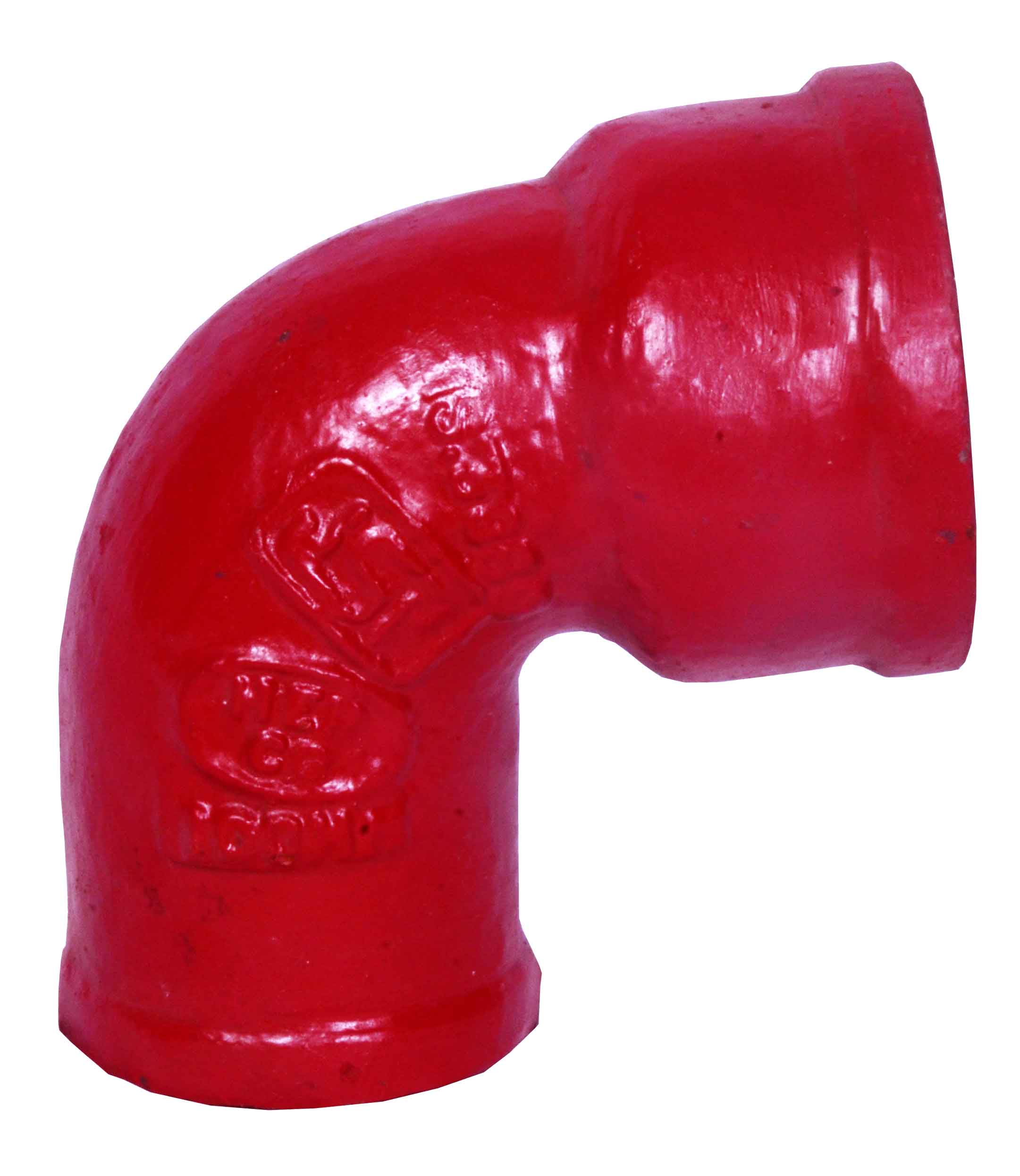

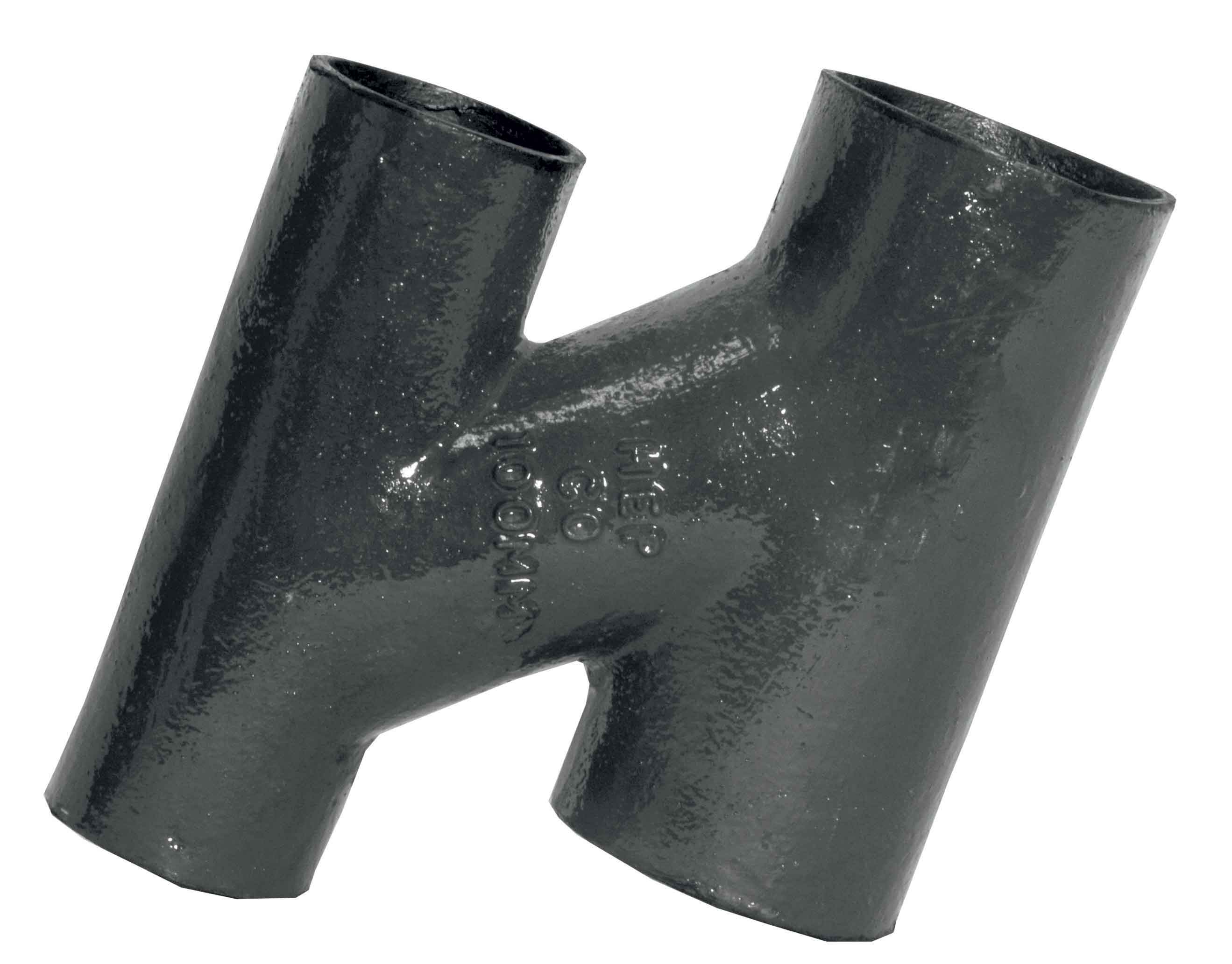

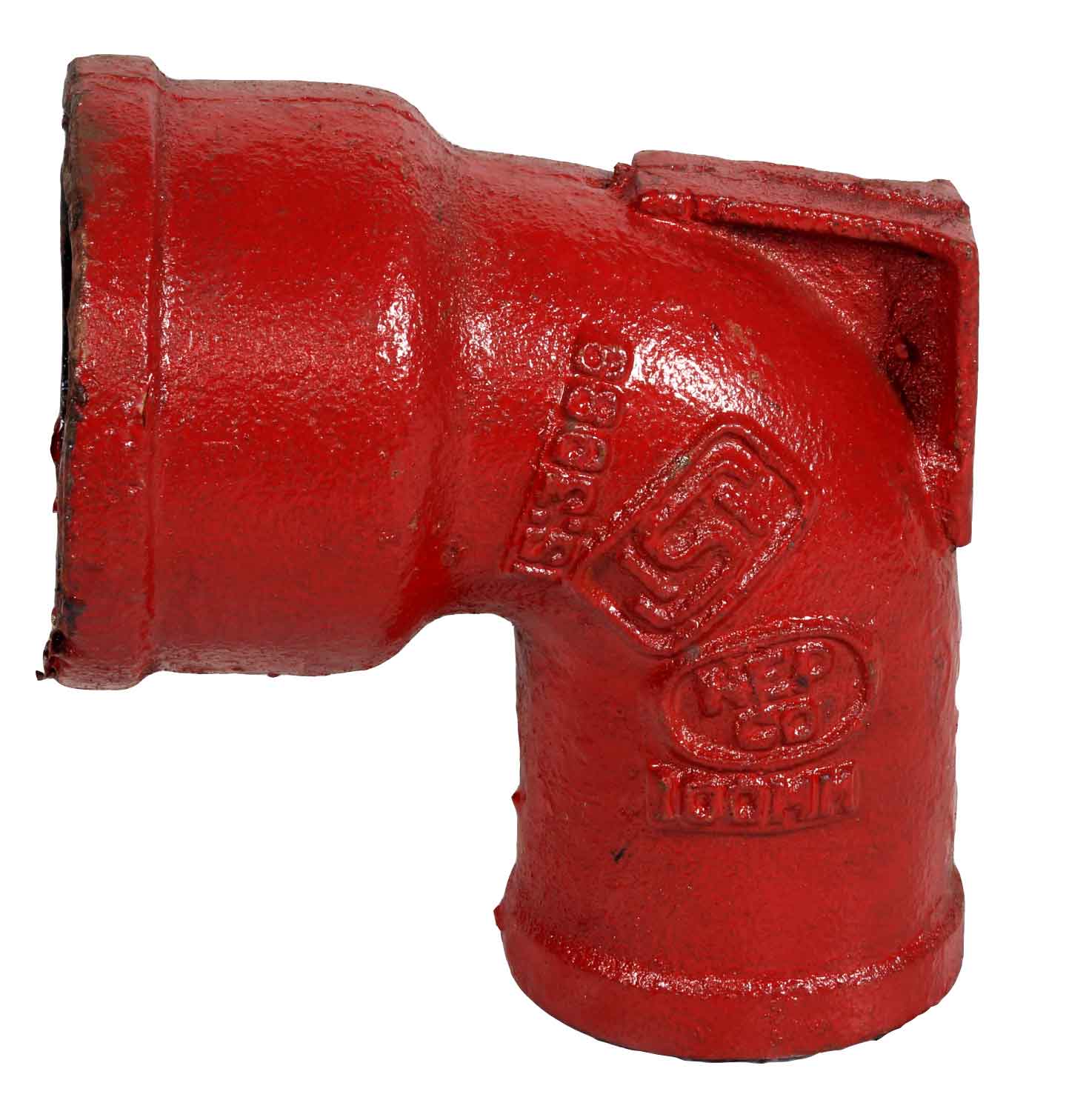

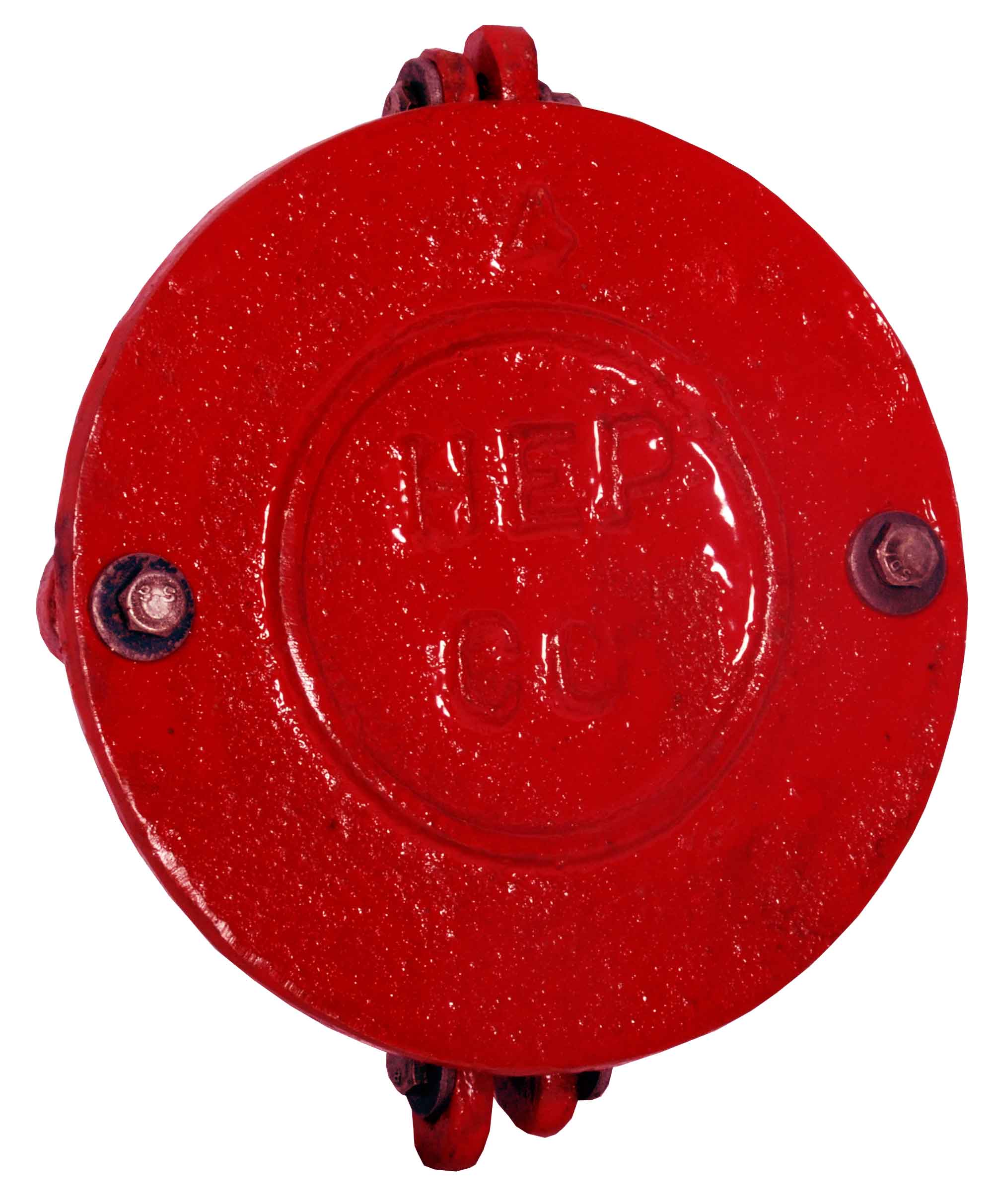

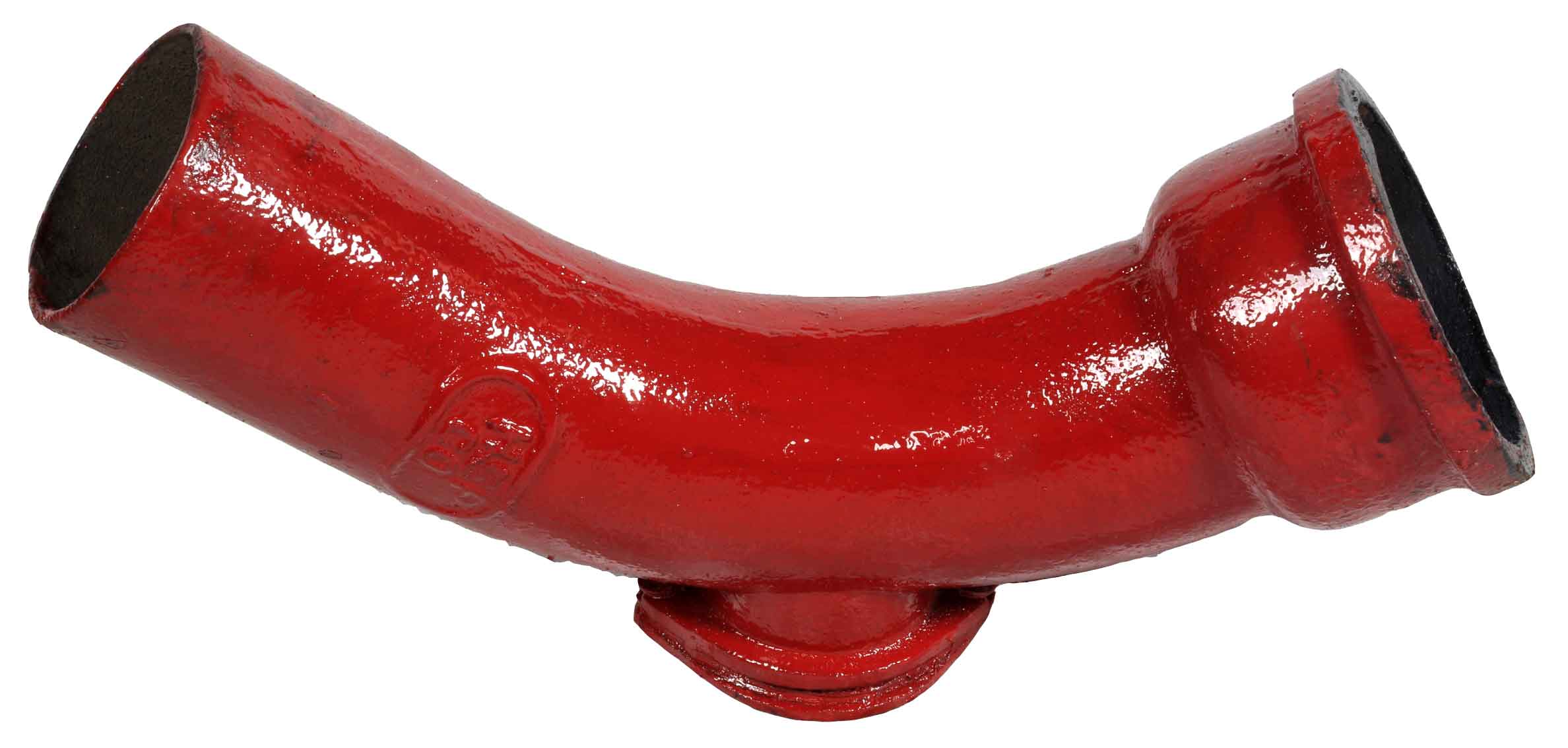

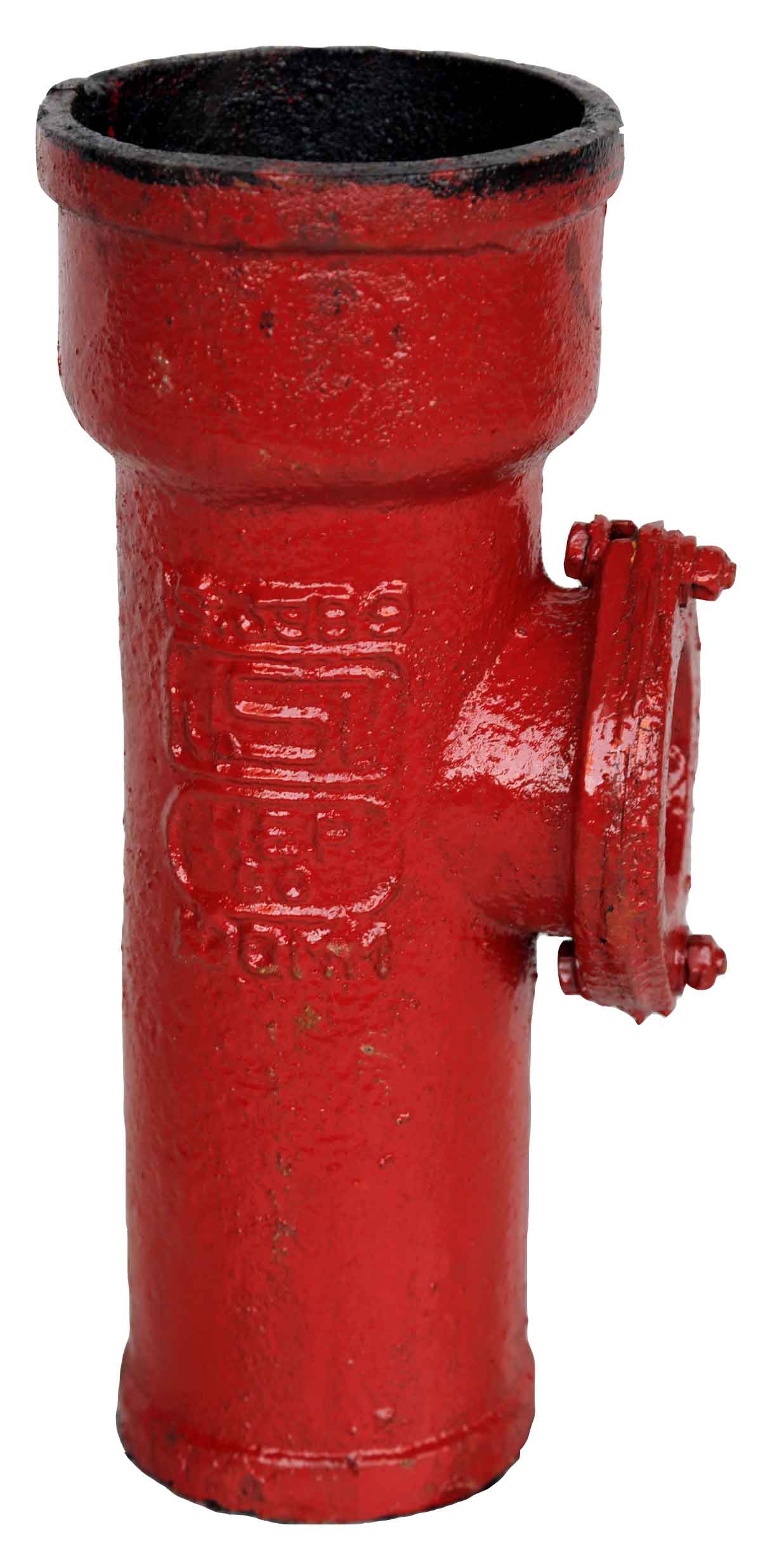

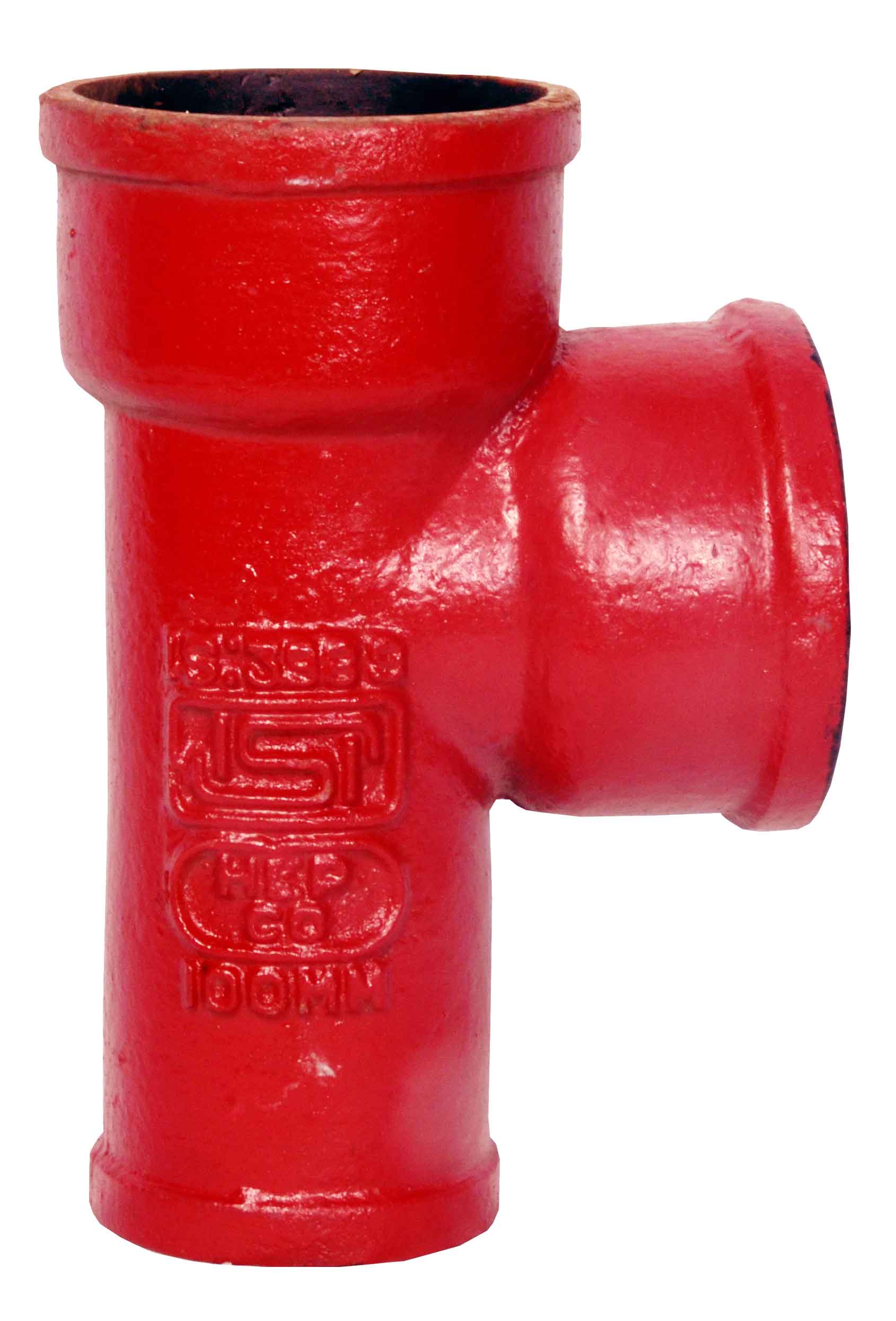

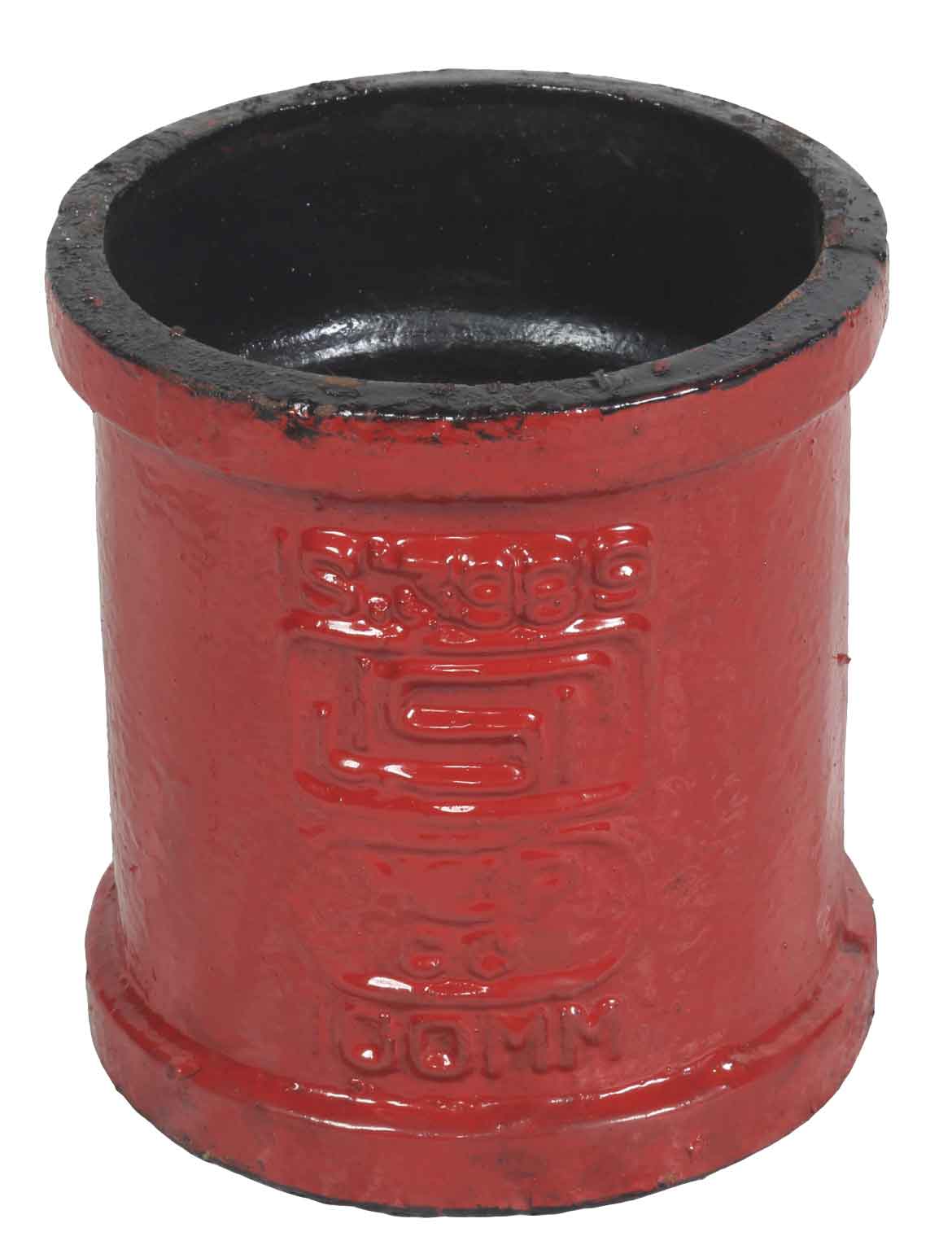

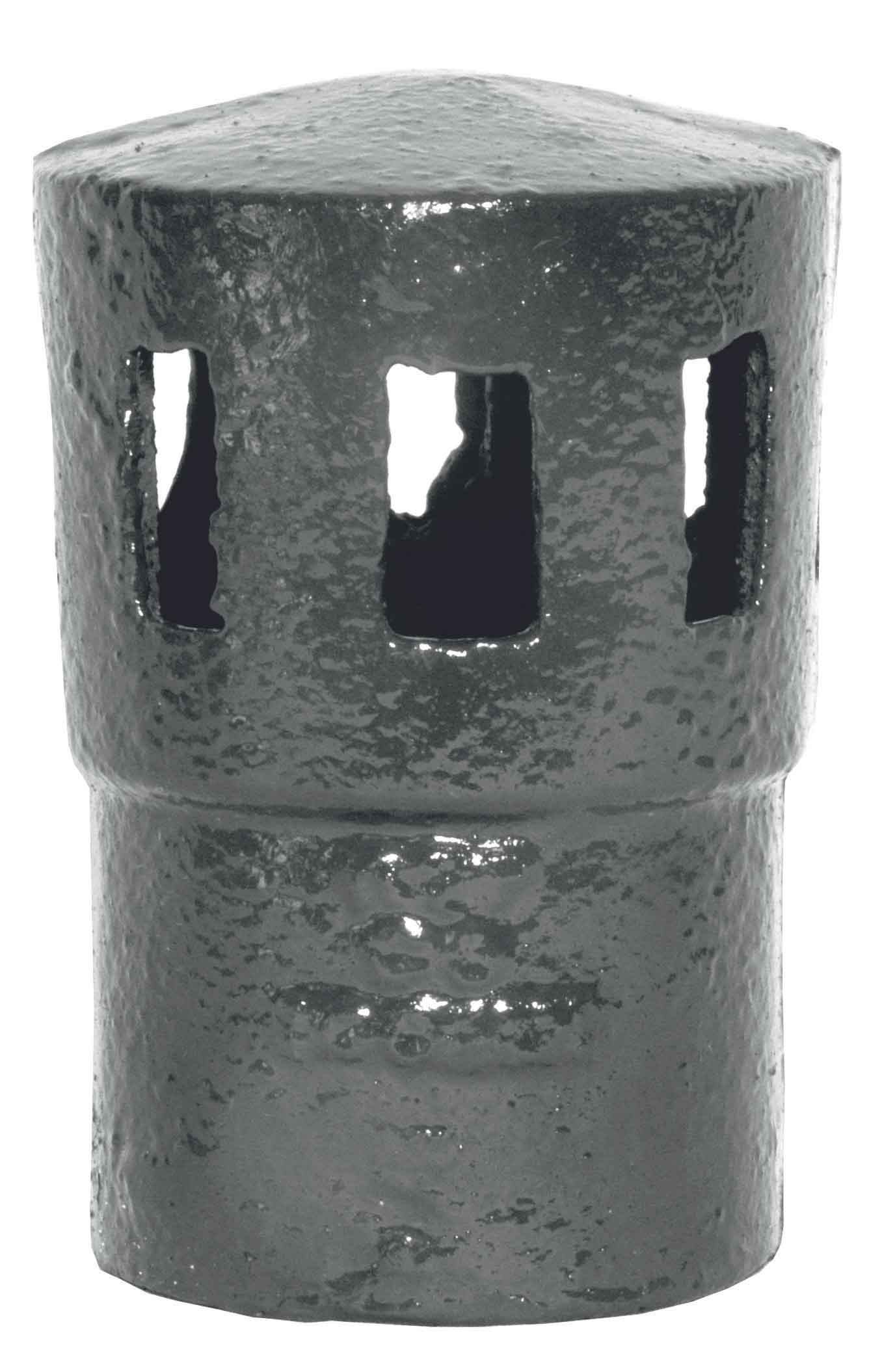

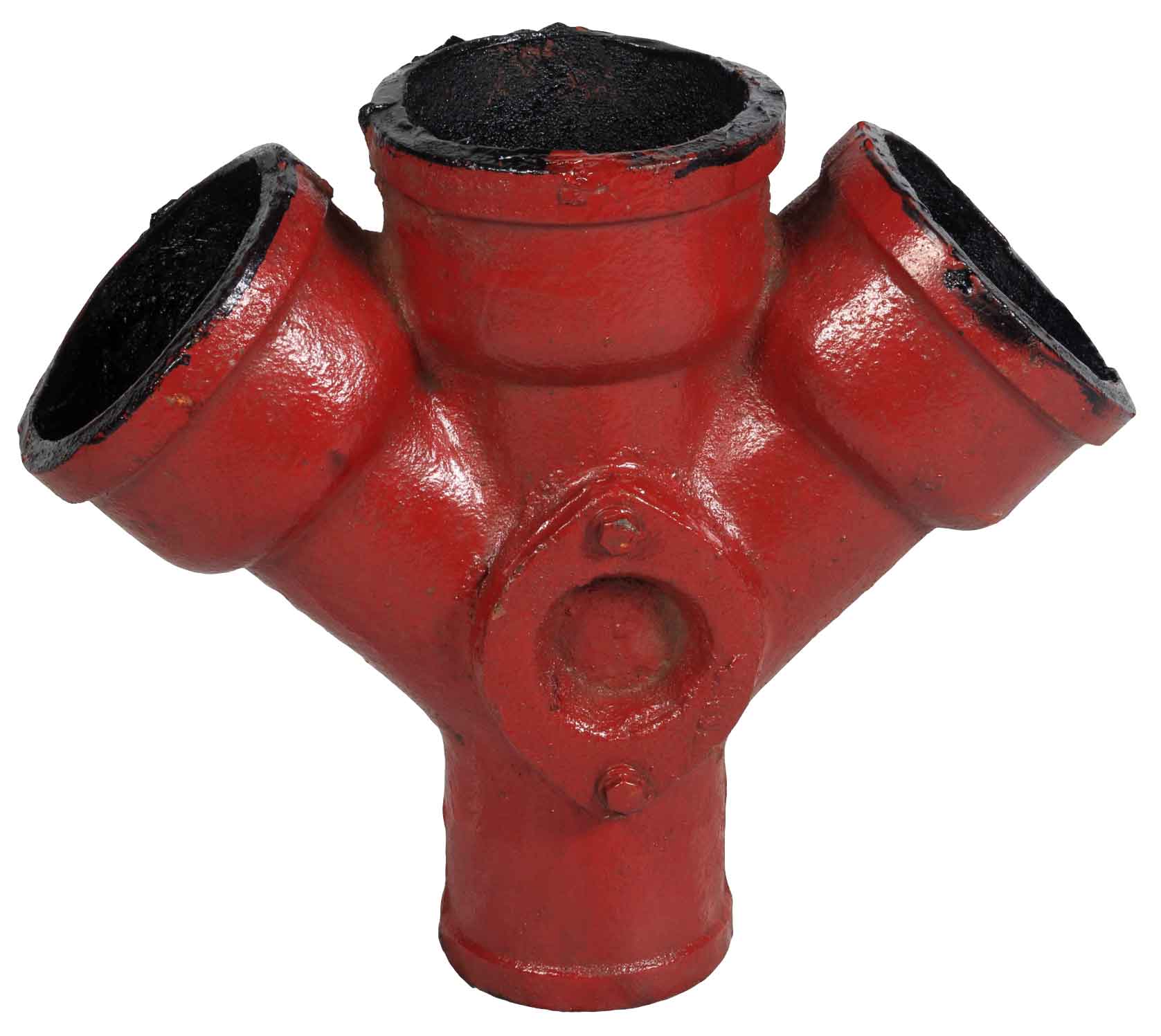

HEPCO is one of the 1st manufacturers of Centrifugal Soil Pipes for IS 3989 in Eastern India. "HEPCO” the name that has become synonymous with Centrifugally Cast Spun Pipes in India, offers Centrifugally Cast (Spun) Iron Spigot and Socket Soil, Waste, Ventilating and Rain Water Pipes, Fittings & Accessories confirming to IS: 3989:2009 for all your Drainage System needs. HEPCO hub pipe and fittings are used in the drainage system for soil, waste , rain water and ventilation.
HEPCO HUB RANGE:
50MM , 75MM , 100MM, 150MM AND 200MM
Product Features:

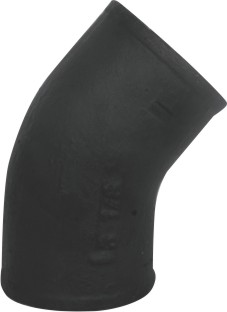

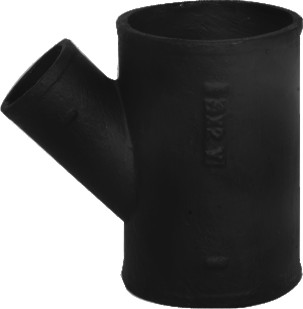

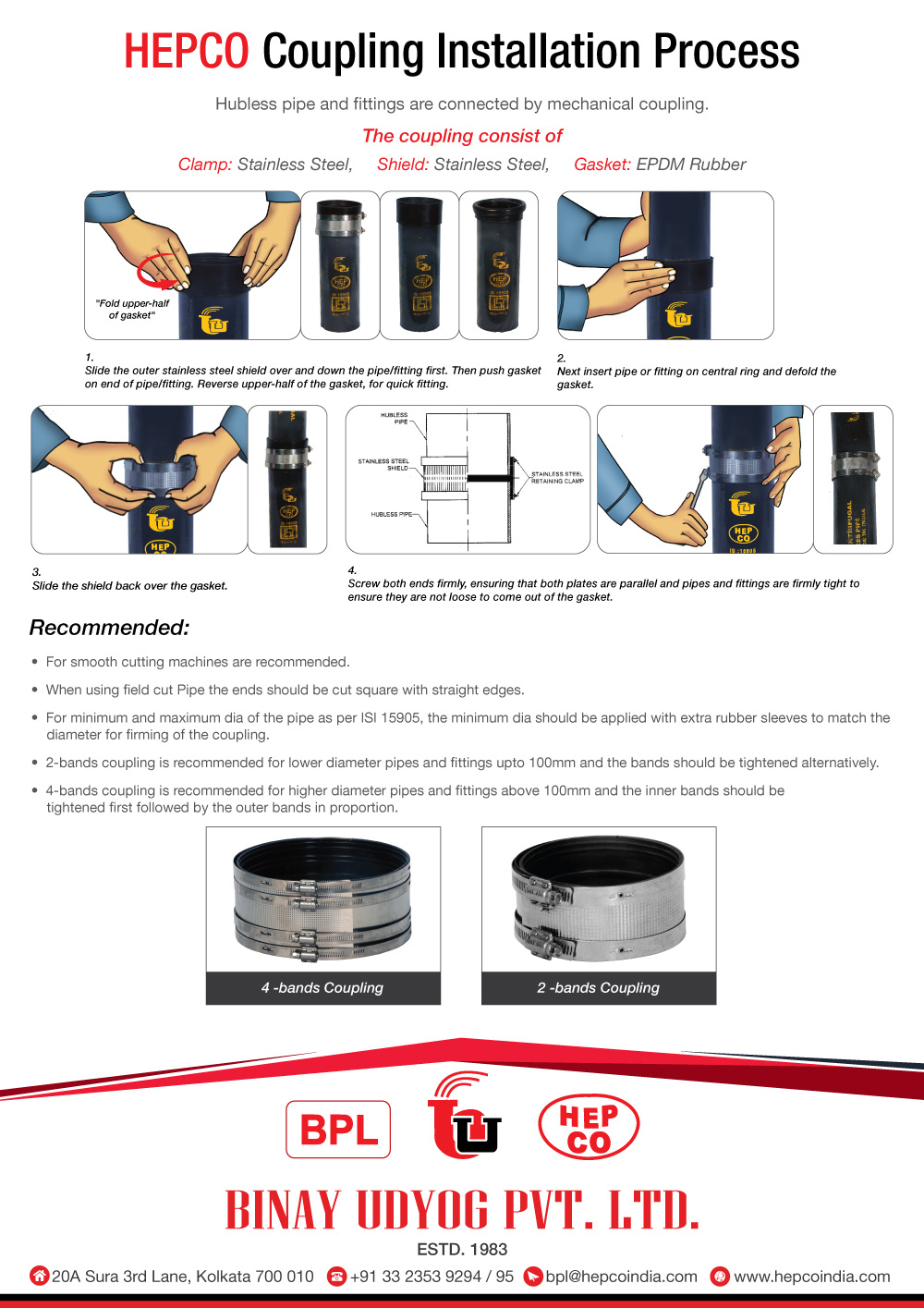

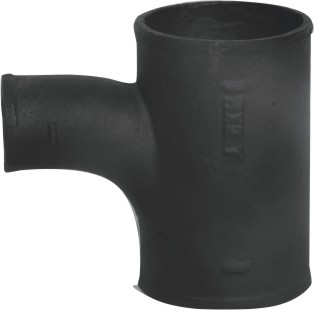

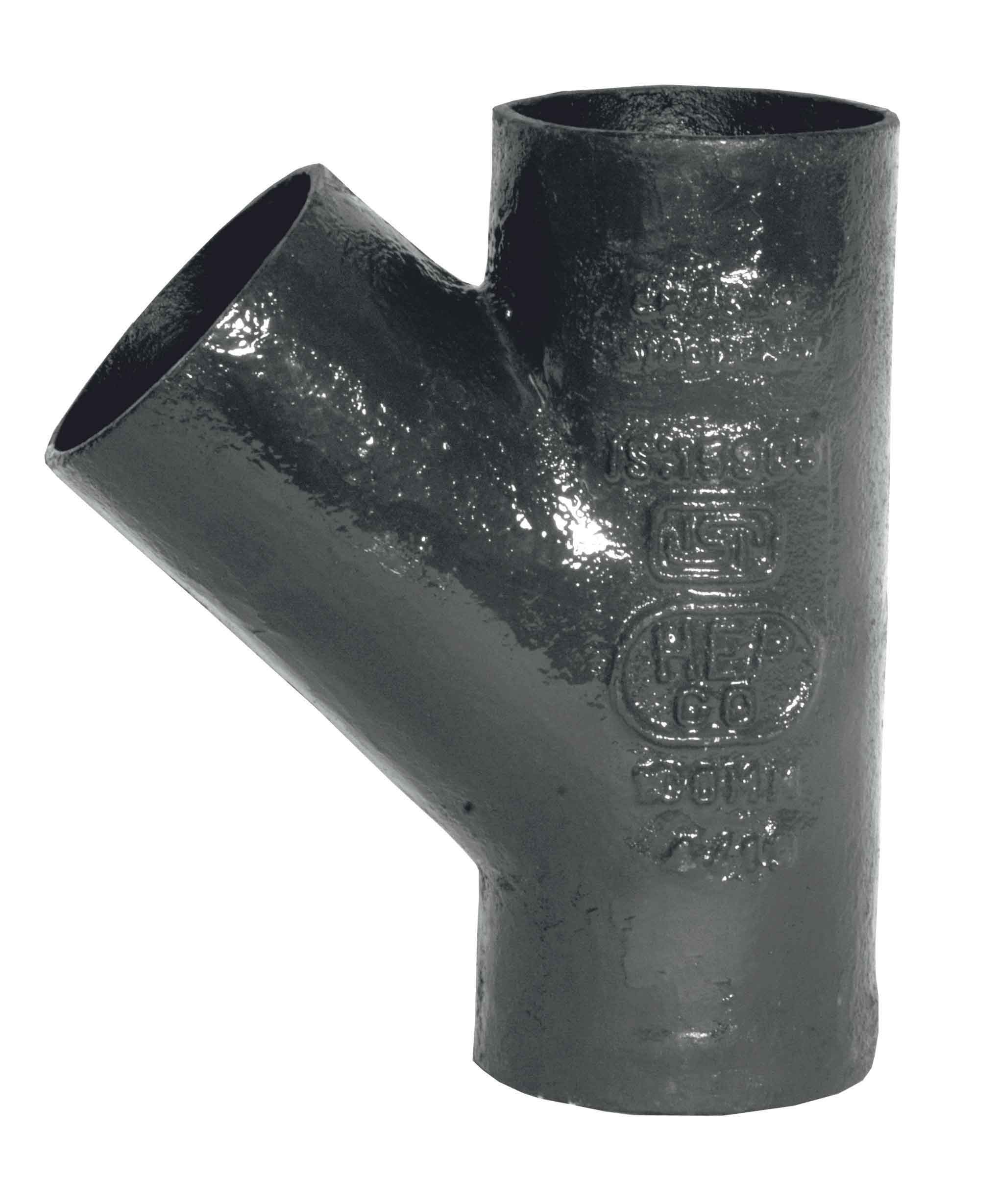

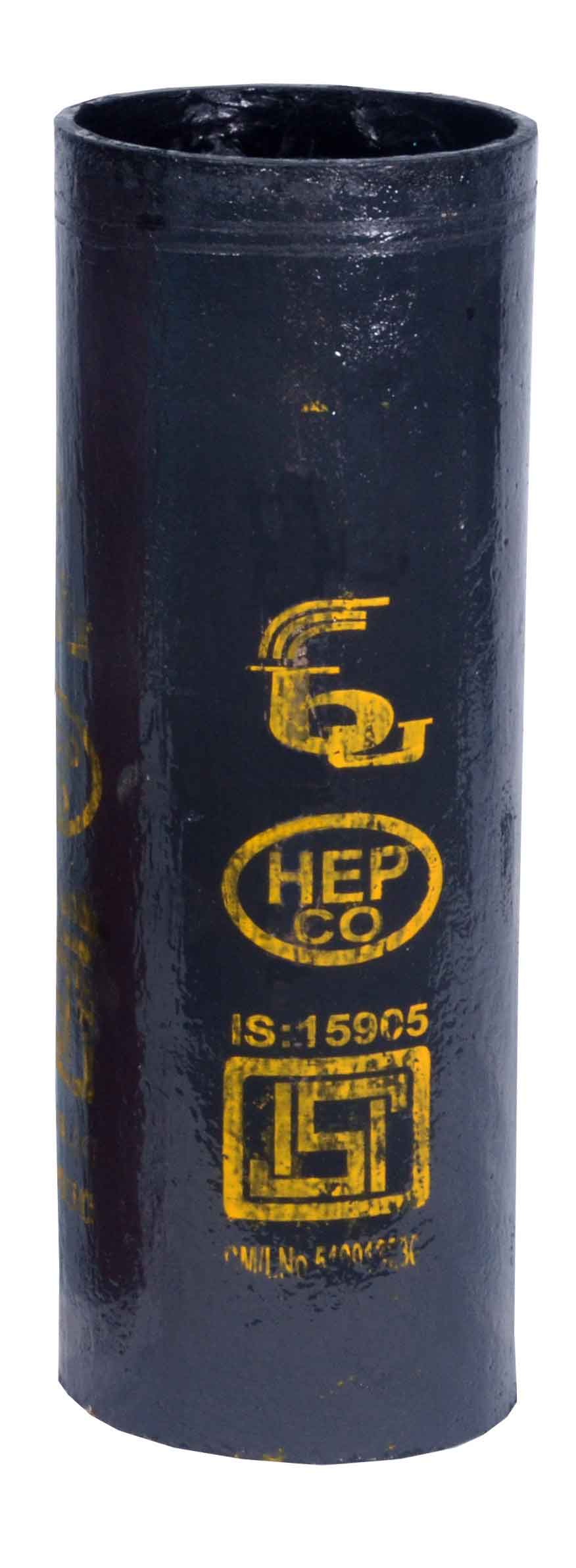

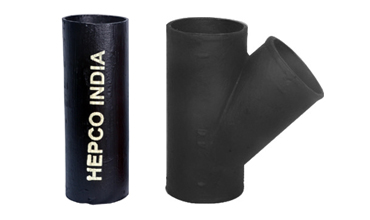

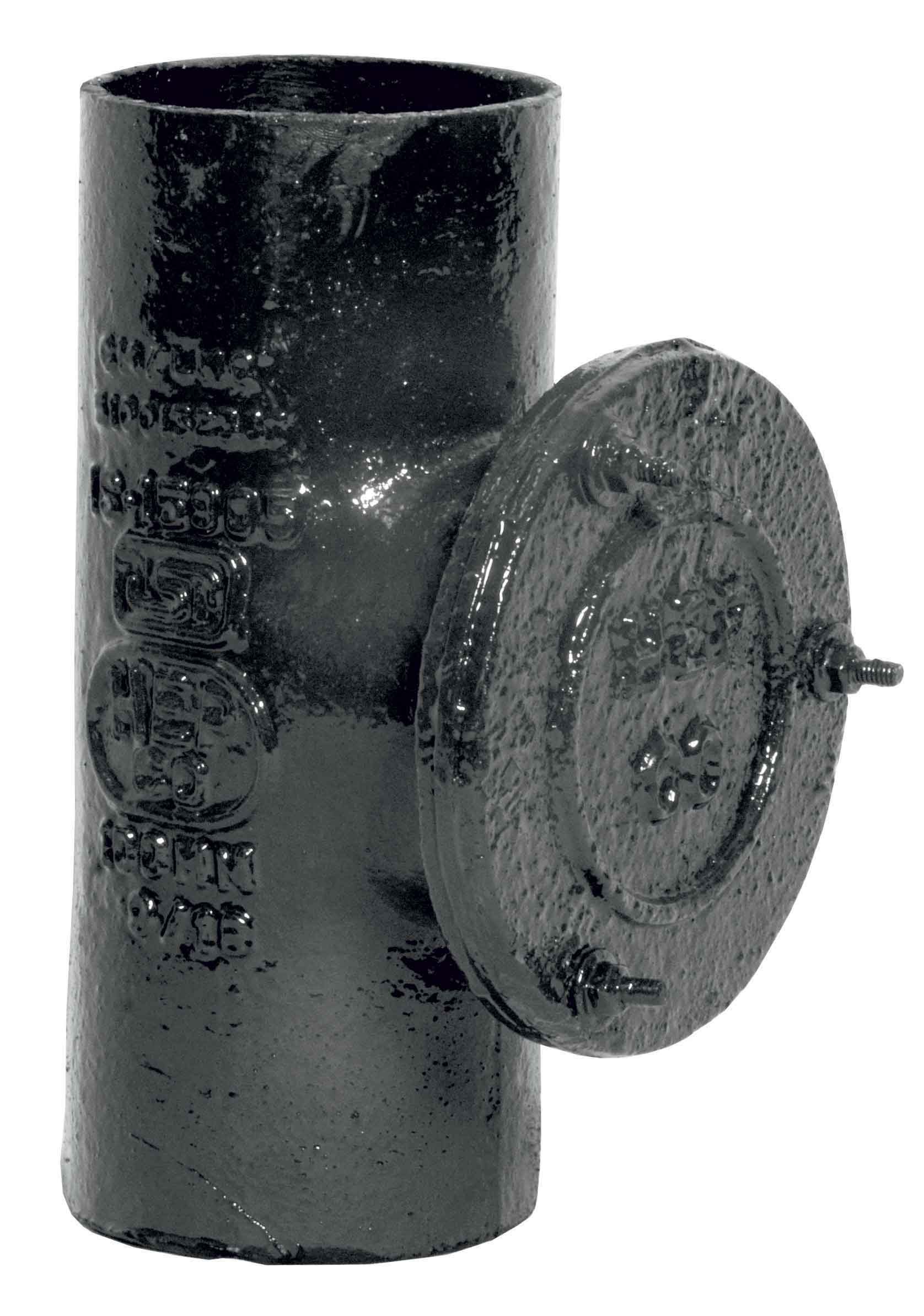

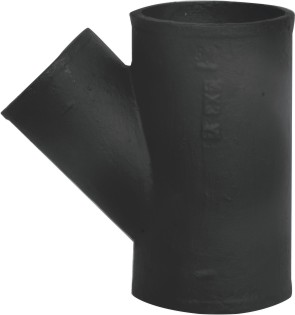

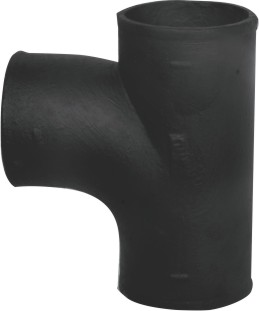

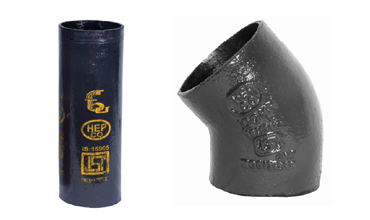

We at HEPCO with our expertise in manufacturing Cast Iron are excited to introduce cast iron Hubless Pipes & Fittings in India. We manufacture centrifugally cast pipes & fittings and offer Hubless Centrifugally Cast (Spun) Iron Pipes, Fittings and Accessories confirming to IS 15905:2011. A true centrifugal casting process in which each pipe is casted individually in metal moulds ensuring superior quality. The superior quality assurance and control measures ensures that you get the best piping for the world class Plumbing & Drainage system. These products have an unparalleled advantage of easy installation. HEPCO hubless pipe and fittings are used in the drainage system for soil, waste , rain water and ventilation.
HEPCO HUBLESS RANGE:
50MM , 75MM , 100MM, 150MM AND 200MM
Product Features:
Hepco Hubless Advtanages:

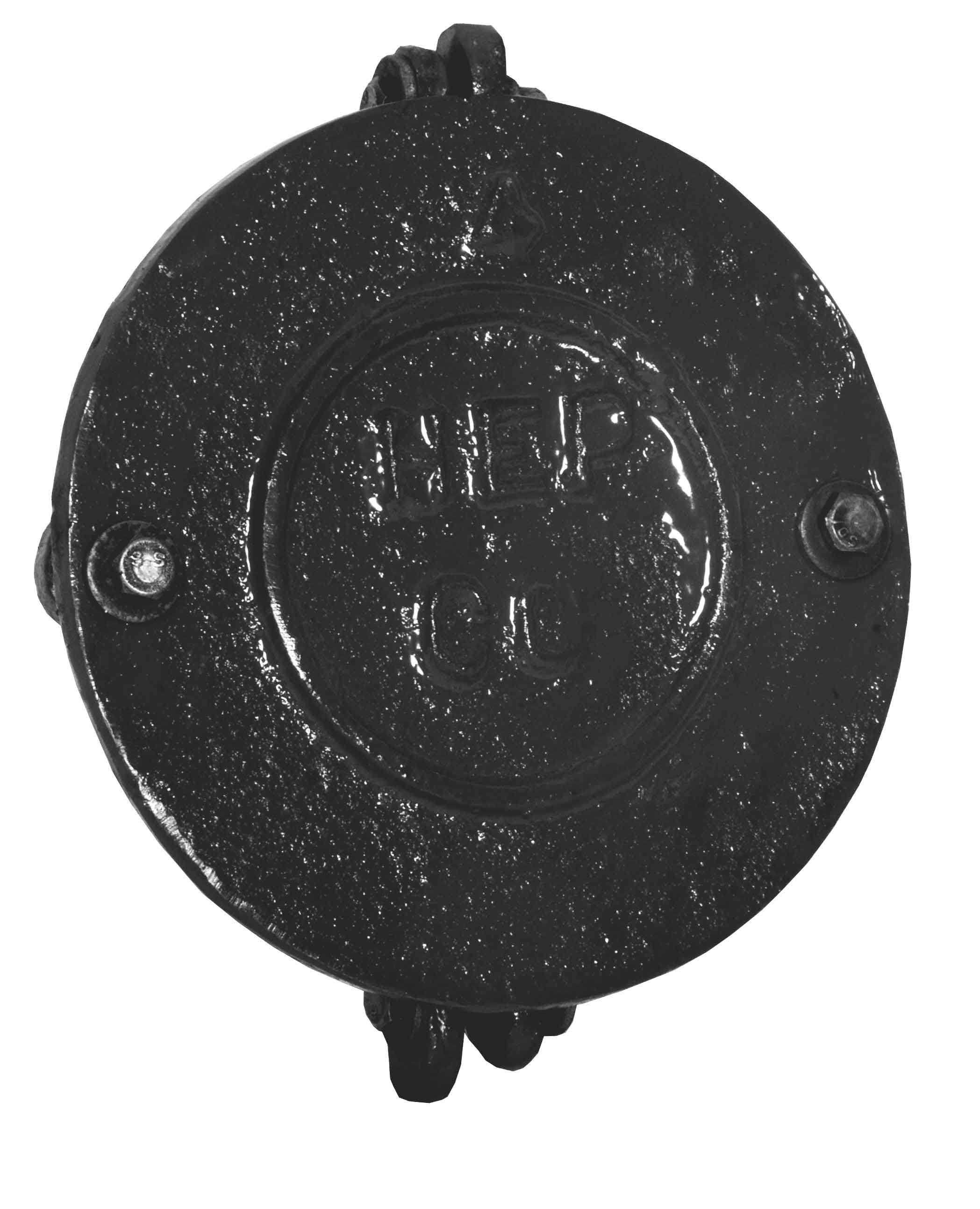

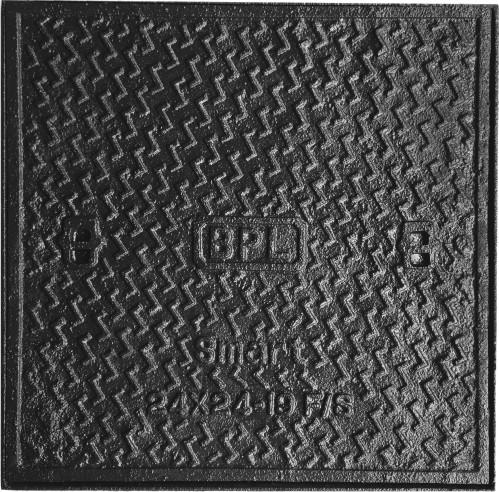

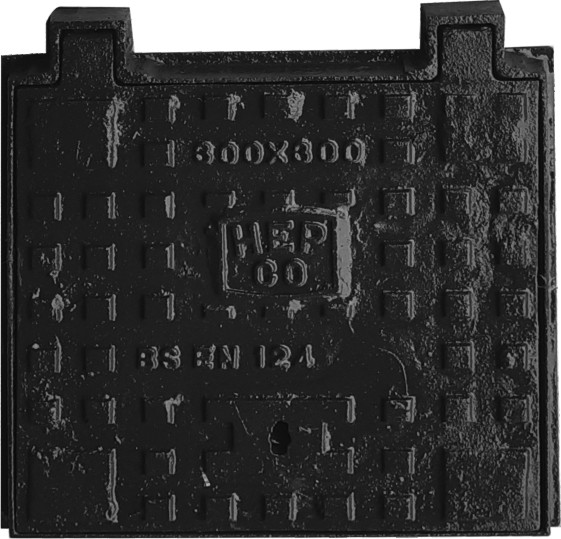

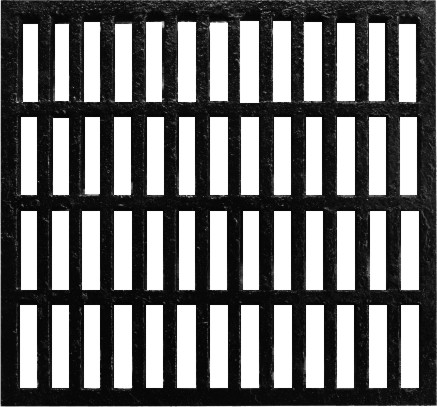

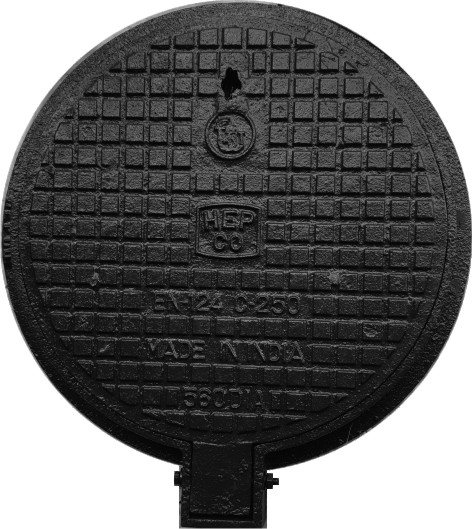

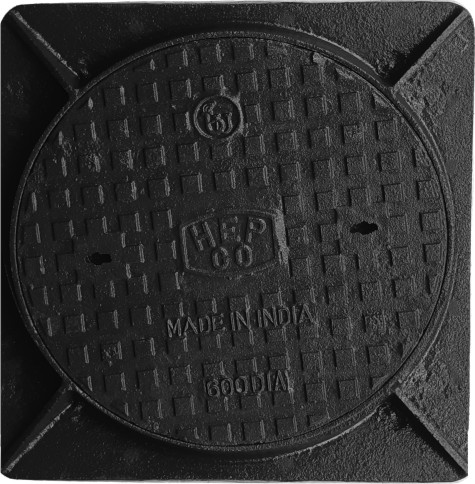

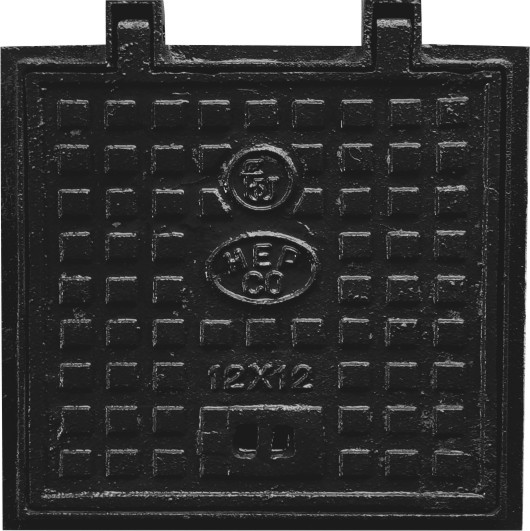

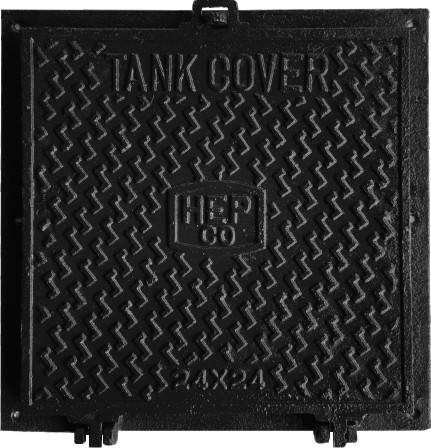

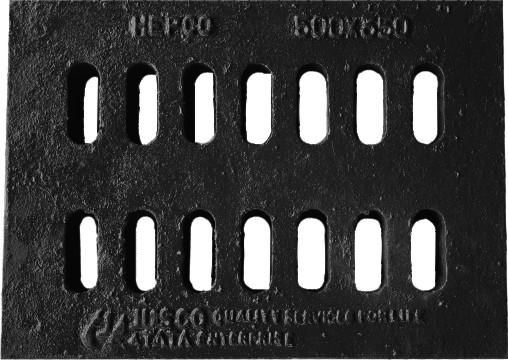

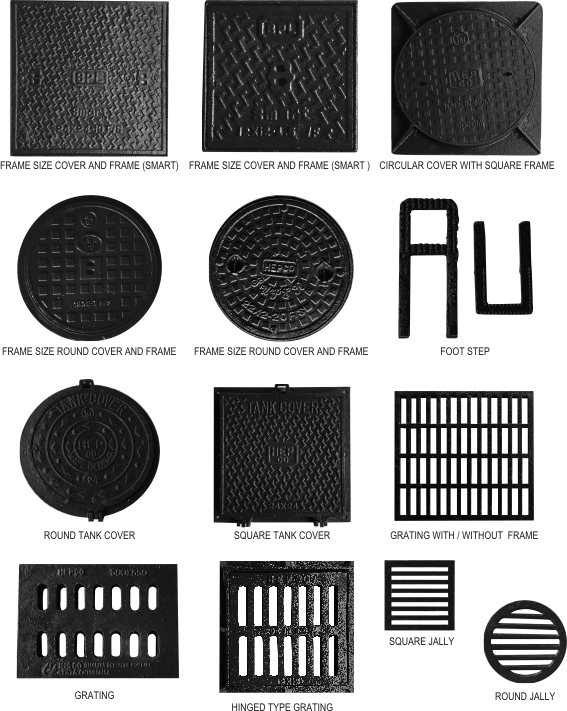

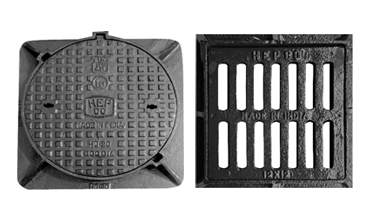

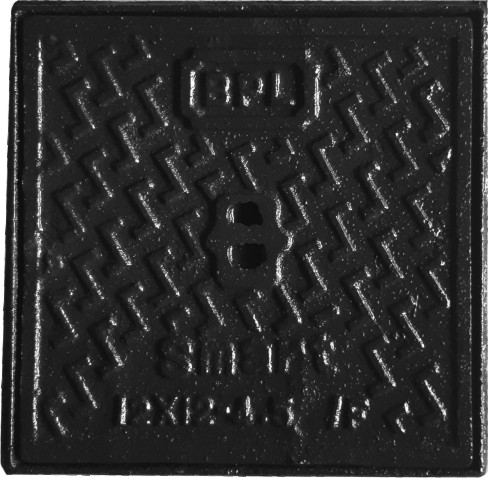

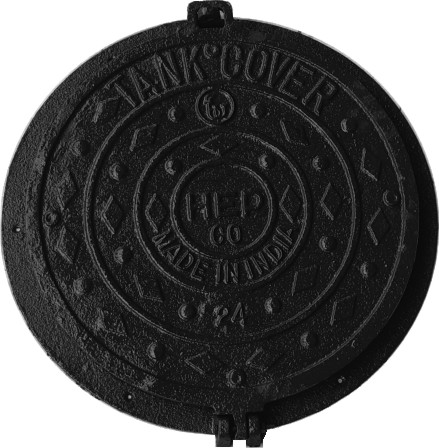

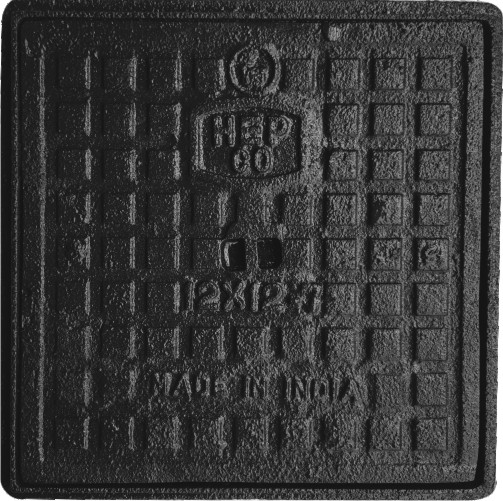

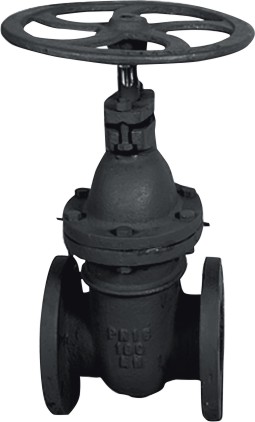

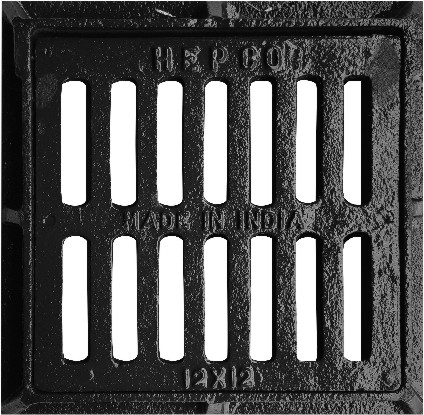

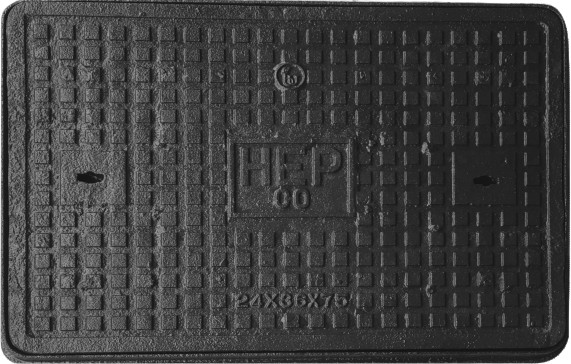

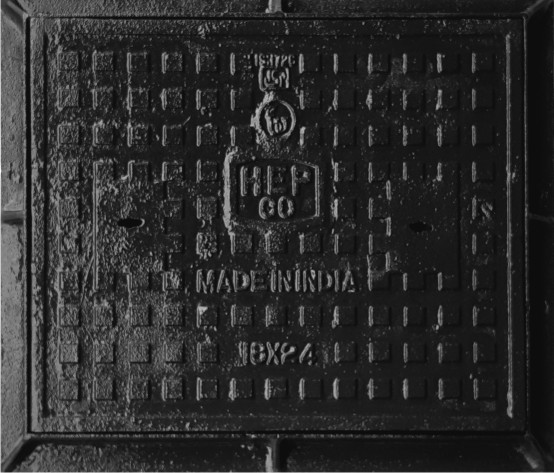

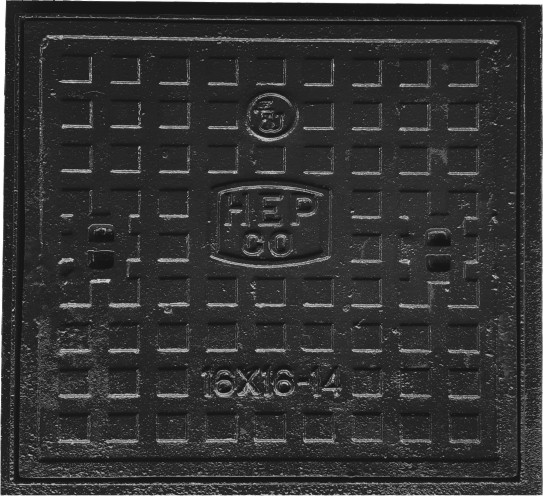

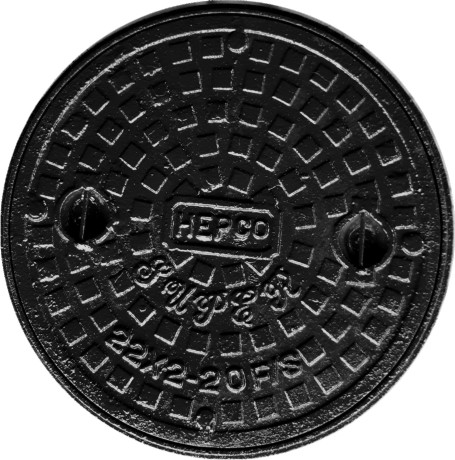

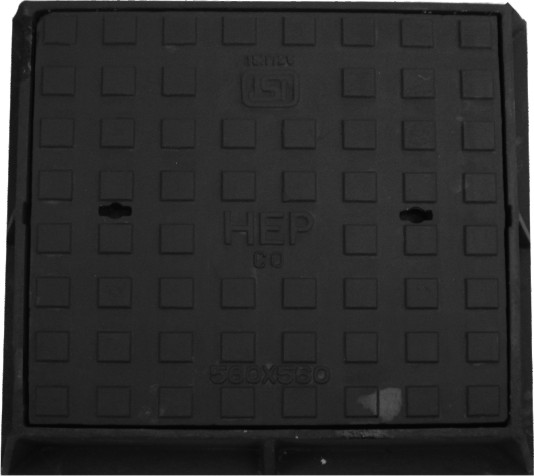

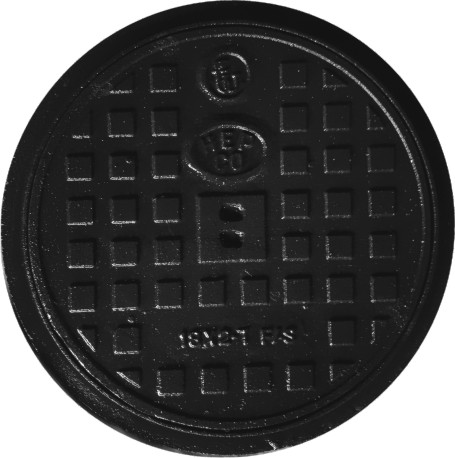

HEPCO offers solutions for every traffic constraint and has designed its manhole covers and frames in response to traffic conditions, offering stability, safety and silence. Our wide range of cast iron products include square and rectangular manhole covers, round manhole covers, water meters, grates, jally, valves, recessed covers, and we also design as per the customers requirement.
Purposes of Manhole Covers and Frames:
Product Features:

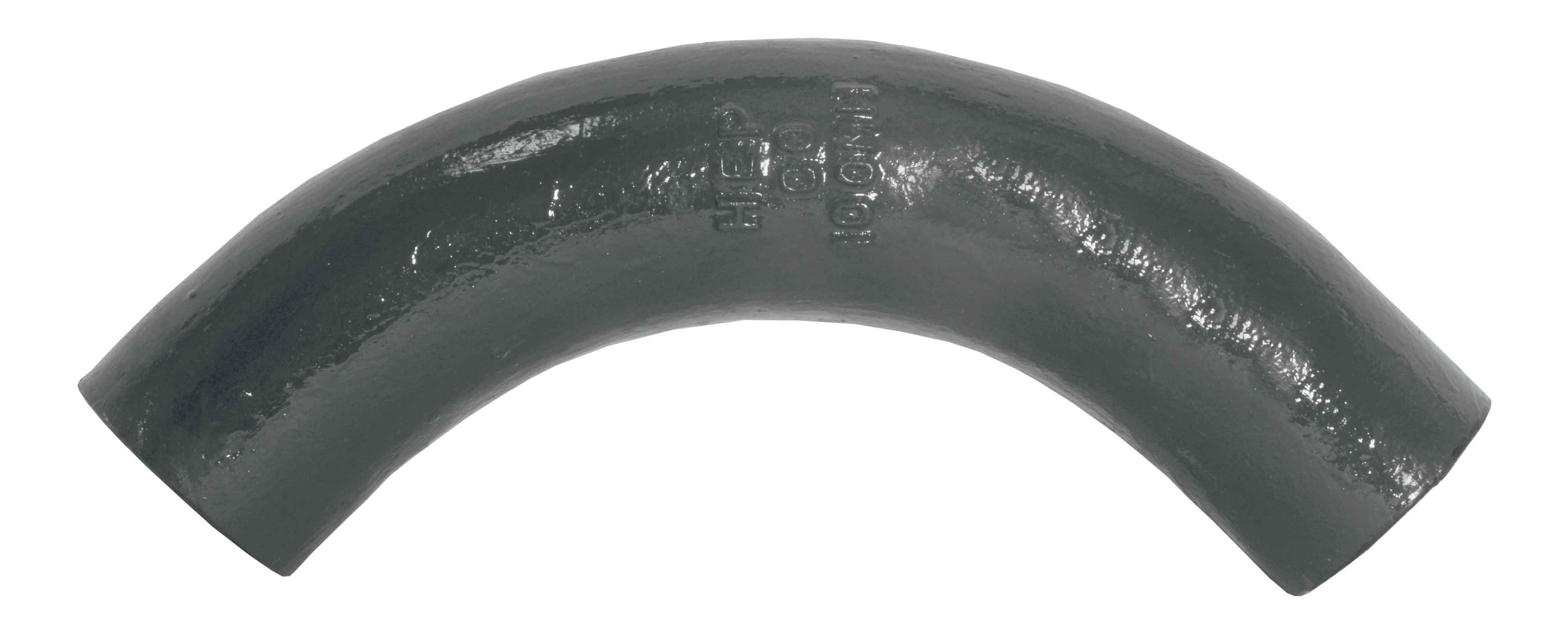

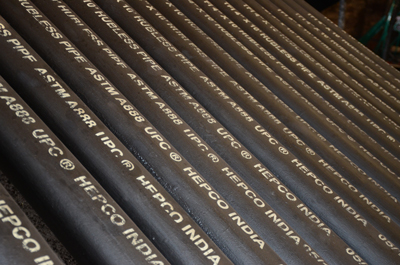

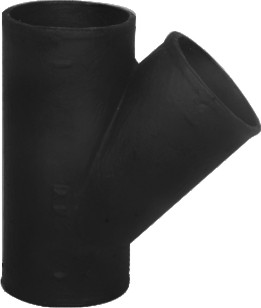

HEPCO is one of the largest exporters of No-Hub Cast Iron Pipe and Fittings of premium quality cast iron as per international standards ASTM A 888, CISPI 301. Our plant is UPC approved to manufacture ASTM A 888 and CISPI 301 products.
Product Features:

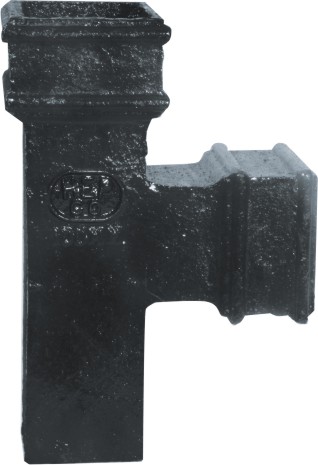

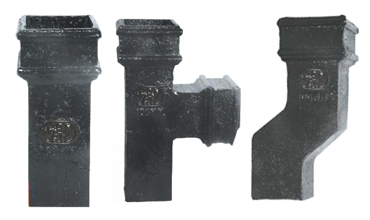

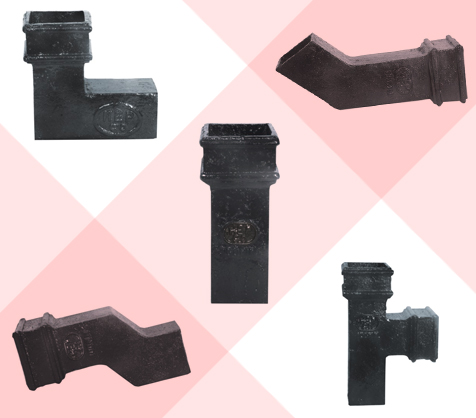

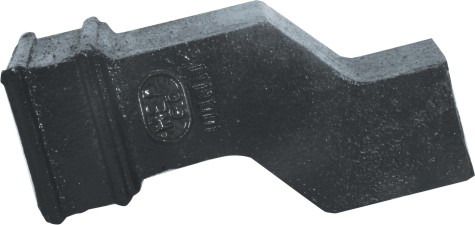

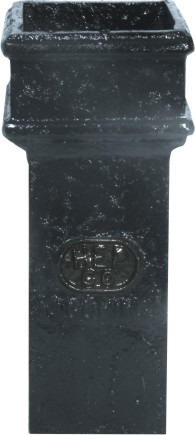

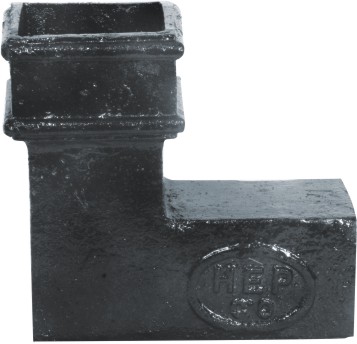

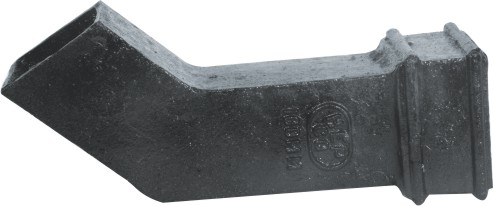

HEPCO is proud to be one of the manufacturers and developers of Square Pipe and Fittings for heritage sites. These pipes and fittings have been specially customized that are strong, durable and resistant to harsh climatic conditions.
Product Features:

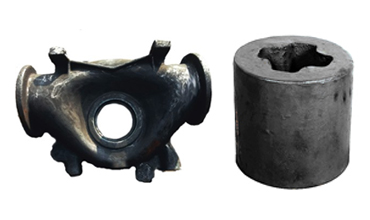

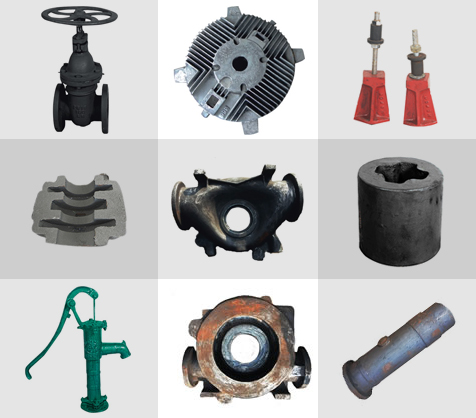

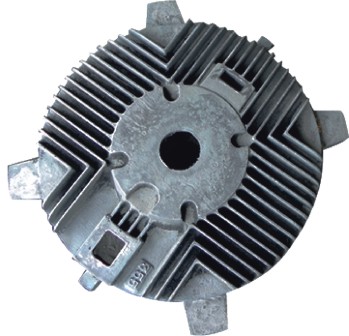

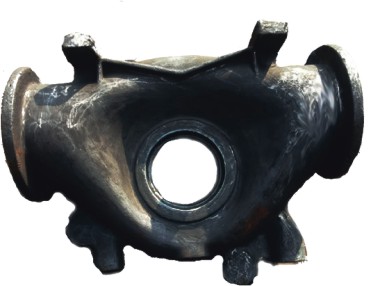

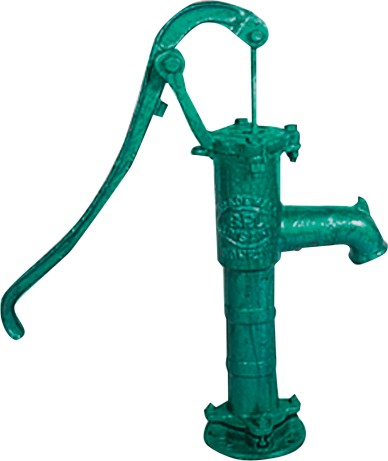

HEPCO is proud to manufacture countless customized cast iron parts that are strong, durable and resistant to harsh climatic conditions. These products are suitable for various industries such as agriculture, automobile, and machines and tools. We also manufacture decorative parts, tube-wells, and other industrial and ornamental castings as per customer requirement and specifications.
Product Features:
